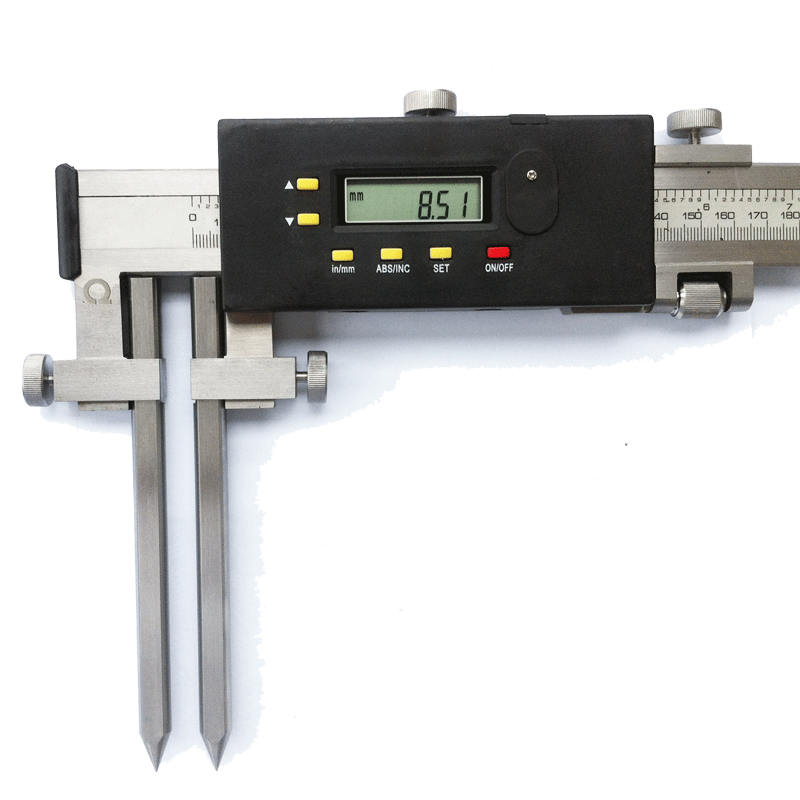

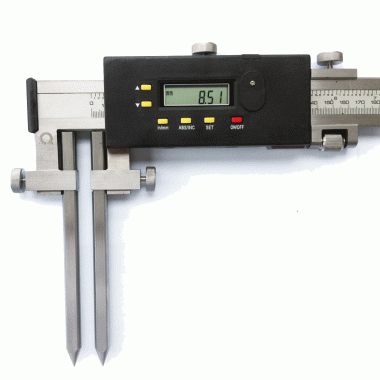

点击 订货号或厂家货号了解中心距数显卡尺(非标定制)系列下各规格产品更多参数

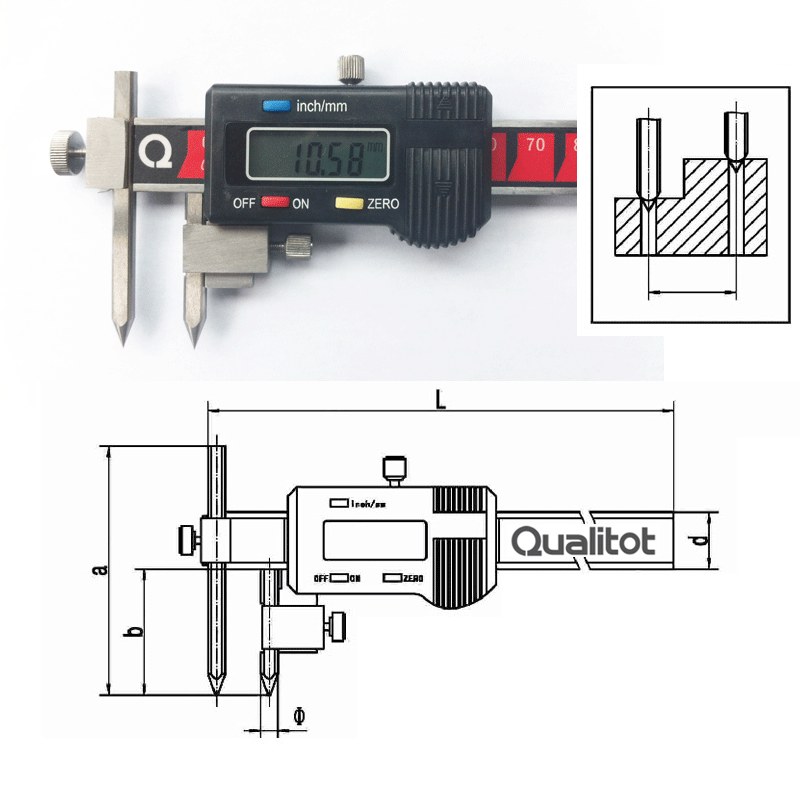

| 订货号 | 厂家货号 | 测量范围(mm) | 分辨力(mm) | 最大允许误差(mm) | a(mm) | b(mm) | d(mm) | ф(mm) | 市场价 | 促销价 | 购买 |
| 20416 | Q20416 | 5-150 | 0.01 | ±0.05 | 60 | 35 | 16 | 5 | - | - | 询价 |
| 53937 | Q53937 | 5-150 | 0.01 | ±0.05 | 100 | 60 | 16 | 10 | - | - | 询价 |
| 25248 | Q25248 | 10-150 | 0.01 | ±0.05 | 100 | 60 | 16 | 10 | - | - | 询价 |
| 19420 | Q19420 | 5-200 | 0.01 | ±0.07 | 60 | 35 | 16 | 5 | - | - | 询价 |
| 19421 | Q19421 | 10-200 | 0.01 | ±0.07 | 100 | 60 | 16 | 10 | - | - | 询价 |
| 30919 | Q30919 | 5-300 | 0.01 | ±0.09 | 60 | 35 | 16 | 5 | - | - | 询价 |
| 19422 | Q19422 | 10-300 | 0.01 | ±0.09 | 100 | 60 | 16 | 10 | - | - | 询价 |
| 19423 | Q19423 | 5-500 | 0.01 | ±0.09 | 80 | 45 | 24 | 5 | - | - | 询价 |

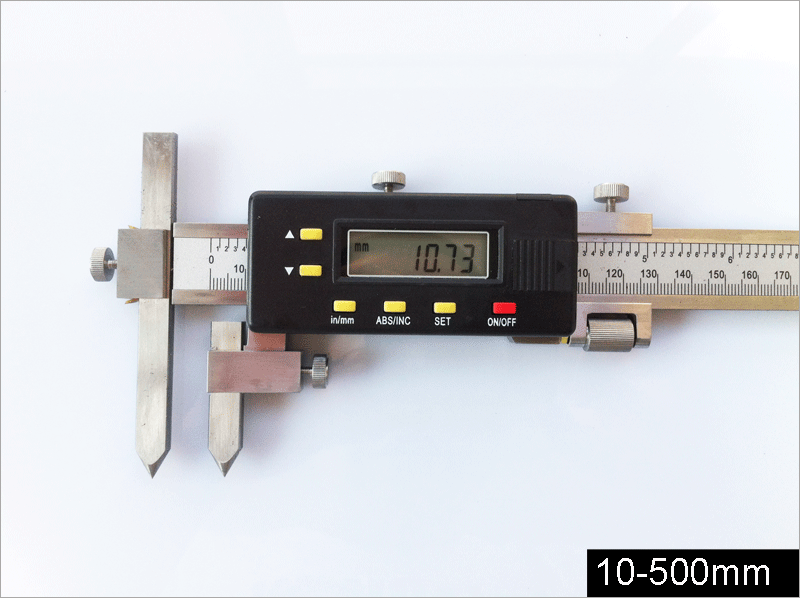

| 19424 | Q19424 | 10-500 | 0.01 | ±0.09 | 80 | 45 | 24 | 10 | - | - | 询价 |
| 39224 | Q39224 | 20-500 | 0.01 | ±0.09 | 80 | 45 | 24 | 10 | - | - | 询价 |
| 31988 | Q31988 | 5-600 | 0.01 | ±0.09 | 80 | 45 | 24 | 5 | - | - | 询价 |
| 56141 | Q 56141 | 32-300 | 0.01 | - | - | 询价 | |||||
| 31989 | Q31989 | 10-600 | 0.01 | ±0.09 | 80 | 45 | 24 | 10 | - | - | 询价 |
| 55944 | Q55944 | 20-1000 | 0.01 | - | - | 询价 | |||||
| 55945 | Q55945 | 中心距测头 | - | - | 询价 | ||||||
| 32033 | Q32033 | 10-800 | 0.01 | ±0.13 | 125 | 55 | 31 | 10 | - | - | 询价 |
| 21690 | Q21690 | 10-1000 | 0.01 | ±0.13 | 125 | 55 | 31 | 10 | - | - | 询价 |
| 19425 | Q19425 | 10-1500 | 0.01 | ±0.18 | 125 | 55 | 42 | 10 | - | - | 询价 |

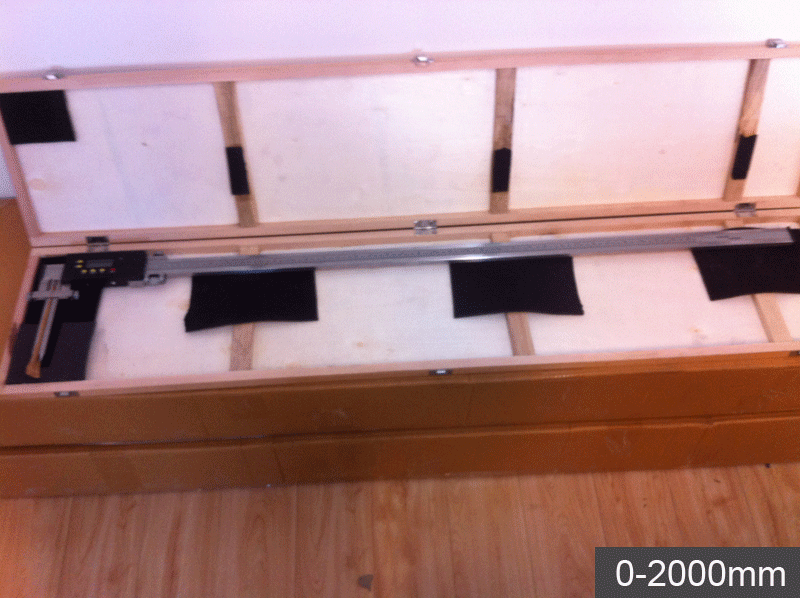

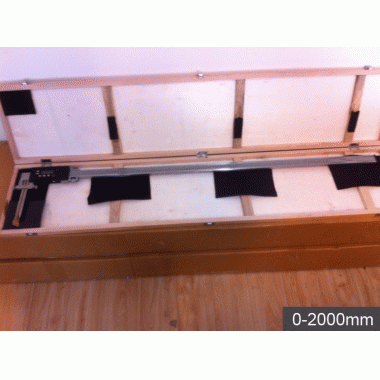

| 32032 | Q32032 | 10-2000 | 0.01 | ±0.18 | 125 | 55 | 42 | 10 | - | - | 询价 |
