点击 订货号或厂家货号了解中心距/边心距锥测头数显卡尺(非标定制)系列下各规格产品更多参数

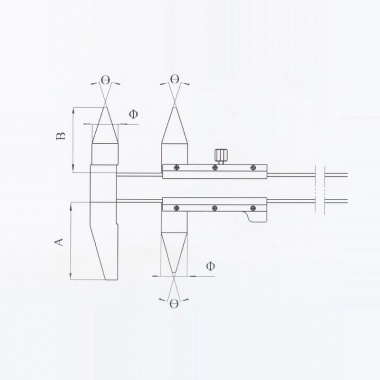

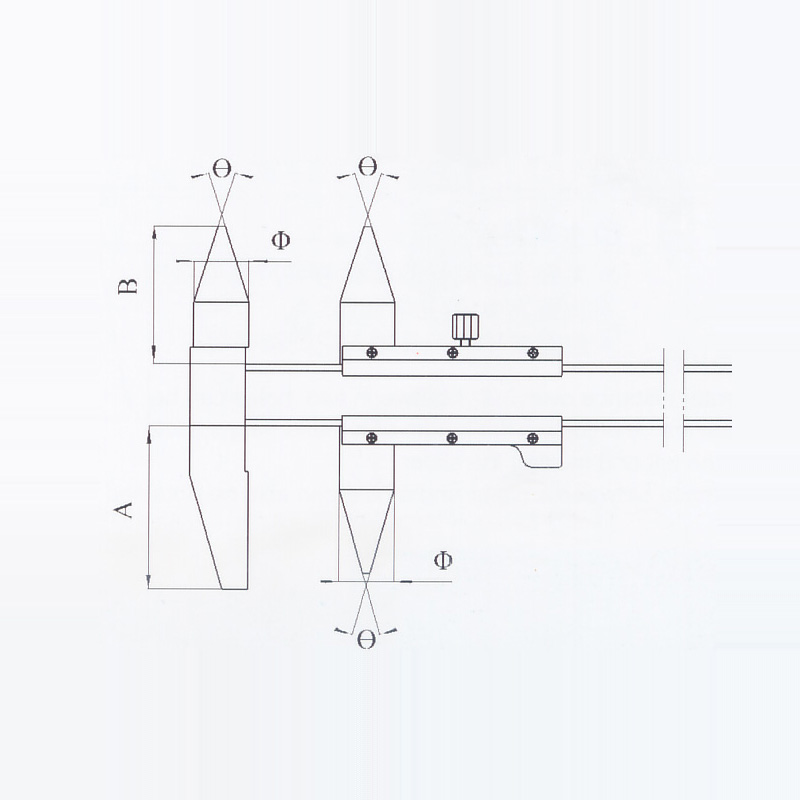

| 订货号 | 厂家货号 | 测量范围(mm) | 分辨力(mm) | 最大允许误差(mm) | a(mm) | b(mm) | ф(mm) | θ(º) | 市场价 | 促销价 | 购买 |
| 25109 | Q25109 | 5-150 | 0.01 | ±0.05 | 60 | 45 | 10 | 60 | - | - | 询价 |
| 19489 | Q19489 | 10-150 | 0.01 | ±0.05 | 60 | 45 | 20 | 60 | - | - | 询价 |
| 32244 | Q32244 | 15-150 | 0.01 | ±0.05 | 60 | 45 | 30 | 60 | - | - | 询价 |
| 31990 | Q31990 | 5-200 | 0.01 | ±0.07 | 60 | 45 | 10 | 60 | - | - | 询价 |
| 19497 | Q19497 | 10-200 | 0.01 | ±0.07 | 60 | 45 | 20 | 60 | - | - | 询价 |
| 32245 | Q32245 | 15-200 | 0.01 | ±0.07 | 60 | 45 | 30 | 60 | - | - | 询价 |
| 35266 | Q35266 | 20-200 | 0.01 | ±0.07 | - | - | 询价 | ||||
| 20415 | Q20415 | 5-300 | 0.01 | ±0.09 | 60 | 45 | 10 | 60 | - | - | 询价 |
| 19498 | Q19498 | 10-300 | 0.01 | ±0.09 | 60 | 45 | 20 | 60 | - | - | 询价 |
| 32246 | Q32246 | 15-300 | 0.01 | ±0.09 | 60 | 45 | 30 | 60 | - | - | 询价 |
| 35267 | Q35267 | 20-300 | 0.01 | ±0.09 | - | - | 询价 | ||||
| 31991 | Q31991 | 5-500 | 0.01 | ±0.09 | 60 | 45 | 10 | 60 | - | - | 询价 |
| 31992 | Q31992 | 10-500 | 0.01 | ±0.09 | 60 | 45 | 20 | 60 | - | - | 询价 |
| 32258 | Q32258 | 15-500 | 0.01 | ±0.09 | 60 | 45 | 30 | 60 | - | - | 询价 |
| 32200 | Q32200 | 5-600 | 0.01 | ±0.09 | 60 | 45 | 10 | 60 | - | - | 询价 |
| 32201 | Q32201 | 10-600 | 0.01 | ±0.09 | 60 | 45 | 20 | 60 | - | - | 询价 |
| 32259 | Q32259 | 15-600 | 0.01 | ±0.09 | 60 | 45 | 30 | 60 | - | - | 询价 |
| 32202 | Q32202 | 5-800 | 0.01 | ±0.13 | 90 | 60 | 10 | 60 | - | - | 询价 |
| 32203 | Q32203 | 10-800 | 0.01 | ±0.13 | 90 | 60 | 20 | 60 | - | - | 询价 |
| 32260 | Q32260 | 15-800 | 0.01 | ±0.13 | 90 | 60 | 30 | 60 | - | - | 询价 |
| 32042 | Q32042 | 5-1000 | 0.01 | ±0.13 | 90 | 60 | 10 | 60 | - | - | 询价 |
| 32044 | Q32044 | 10-1000 | 0.01 | ±0.13 | 90 | 60 | 20 | 60 | - | - | 询价 |
| 32261 | Q32261 | 15-1000 | 0.01 | ±0.13 | 90 | 60 | 30 | 60 | - | - | 询价 |
| 32210 | Q32210 | 5-1500 | 0.01 | ±0.18 | 90 | 60 | 10 | 60 | - | - | 询价 |
| 32211 | Q32211 | 10-1500 | 0.01 | ±0.18 | 90 | 60 | 20 | 60 | - | - | 询价 |
| 32262 | Q32262 | 15-1500 | 0.01 | ±0.18 | 90 | 60 | 30 | 60 | - | - | 询价 |
| 56711 | Q 56711 | 28-1500 | 0.01 | - | - | 询价 | |||||

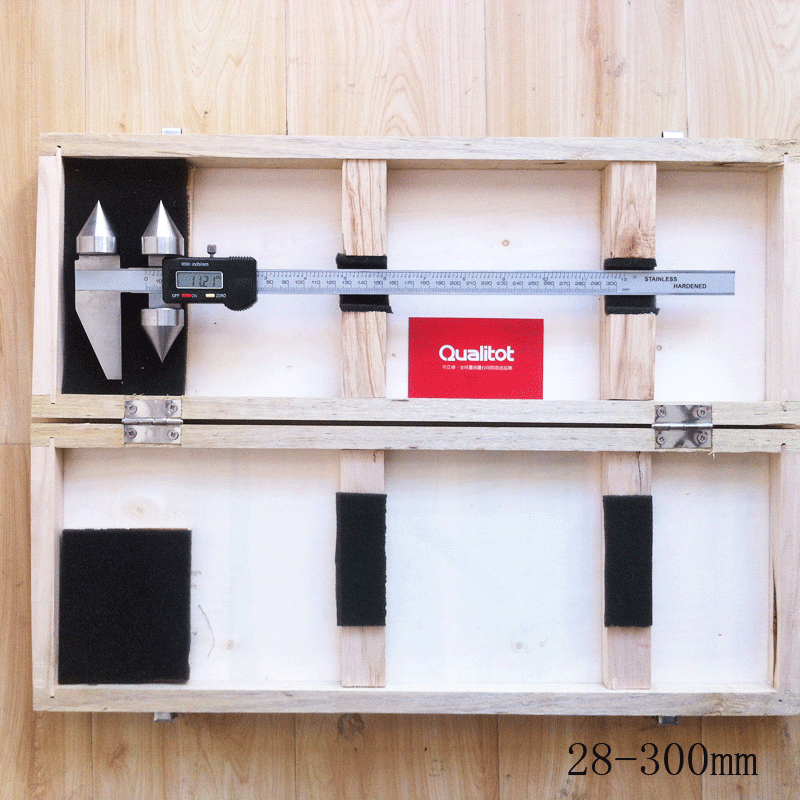

| 55943 | Q55943 | 28-300 | 0.01 | - | - | 询价 | |||||
| 56324 | Q56324 | 30-300 | 0.01 | - | - | 询价 |
