点击 订货号或厂家货号了解圆柱头内沟槽游标卡尺（非标定制）系列下各规格产品更多参数

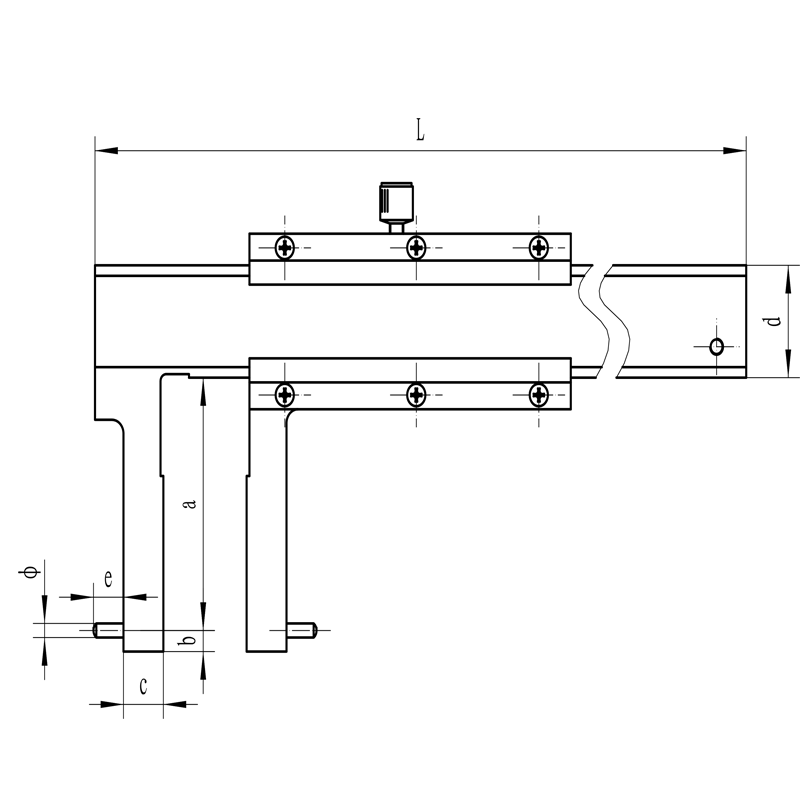

| 订货号 | 厂家货号 | 测量范围(mm) | 分度值(mm) | 允许误差(mm) | a(mm) | b(mm) | c(mm) | d(mm) | e(mm) | Φ(mm) | 市场价 | 促销价 | 购买 |
| 32305 | Q32305 | 6-150 | 0.02 | ±0.05 | 15 | 3 | 2 | 16 | 1 | 1.5 | - | - | 询价 |
| 32306 | Q32306 | 8-150 | 0.02 | ±0.05 | 30 | 3 | 3 | 16 | 1 | 1.5 | - | - | 询价 |
| 32307 | Q32307 | 10-150 | 0.02 | ±0.05 | 30 | 3 | 3 | 16 | 2 | 2 | - | - | 询价 |
| 32308 | Q32308 | 15-150 | 0.02 | ±0.05 | 30 | 3 | 5 | 16 | 2.5 | 2 | - | - | 询价 |
| 32309 | Q32309 | 20-150 | 0.02 | ±0.05 | 30 | 3 | 7 | 16 | 3 | 2 | - | - | 询价 |
| 32310 | Q32310 | 24-150 | 0.02 | ±0.05 | 30 | 3 | 7 | 16 | 5 | 2 | - | - | 询价 |
| 32311 | Q32311 | 35-150 | 0.02 | ±0.06 | 60 | 3 | 11.5 | 16 | 6 | 2 | - | - | 询价 |
| 32312 | Q32312 | 50-150 | 0.02 | ±0.06 | 90 | 3 | 17 | 20 | 8 | 3 | - | - | 询价 |
| 32313 | Q32313 | 20-200 | 0.02 | ±0.05 | 40 | 3 | 7 | 16 | 3 | 2 | - | - | 询价 |
| 32314 | Q32314 | 25-200 | 0.02 | ±0.05 | 40 | 3 | 7.5 | 16 | 5 | 2 | - | - | 询价 |
| 32315 | Q32315 | 40-200 | 0.02 | ±0.06 | 70 | 3 | 13 | 16 | 7 | 3 | - | - | 询价 |
| 32316 | Q32316 | 60-200 | 0.02 | ±0.06 | 100 | 3 | 20 | 20 | 10 | 3 | - | - | 询价 |
| 32317 | Q32317 | 30-300 | 0.02 | ±0.06 | 50 | 3 | 10 | 16 | 5 | 2 | - | - | 询价 |
| 32318 | Q32318 | 50-300 | 0.02 | ±0.07 | 80 | 3 | 15 | 16 | 10 | 3 | - | - | 询价 |
| 32319 | Q32319 | 60-300 | 0.02 | ±0.07 | 110 | 3 | 20 | 20 | 10 | 3 | - | - | 询价 |
| 38925 | Q38925 | 70-300 | 0.02 | ±0.07 | 110 | 3 | 20 | 20 | 10 | 3 | - | - | 询价 |
| 32320 | Q32320 | 40-500 | 0.02 | ±0.07 | 90 | 3 | 15 | 24 | 5 | 3 | - | - | 询价 |
| 32321 | Q32321 | 60-500 | 0.02 | ±0.08 | 120 | 3 | 20 | 24 | 10 | 3 | - | - | 询价 |
| 32322 | Q32322 | 80-500 | 0.02 | ±0.08 | 150 | 3 | 24 | 24 | 16 | 3 | - | - | 询价 |
| 32323 | Q32323 | 40-600 | 0.02 | ±0.07 | 90 | 3 | 15 | 24 | 5 | 3 | - | - | 询价 |
| 32324 | Q32324 | 60-600 | 0.02 | ±0.08 | 120 | 3 | 20 | 24 | 10 | 3 | - | - | 询价 |
| 32325 | Q32325 | 80-600 | 0.02 | ±0.08 | 150 | 3 | 24 | 24 | 16 | 3 | - | - | 询价 |
| 38924 | Q38924 | 120-600 | 0.02 | ±0.15 | 250 | 60 | 30 | 5 | 16 | 3 | - | - | 询价 |
| 32326 | Q32326 | 90-800 | 0.02 | ±0.08 | 100 | 3 | 25 | 31 | 20 | 3 | - | - | 询价 |
| 32679 | Q32679 | 100-800 | 0.02 | ±0.09 | 150 | 3 | 30 | 31 | 20 | 3 | - | - | 询价 |
| 32680 | Q32680 | 110-800 | 0.02 | ±0.09 | 200 | 3 | 30 | 31 | 25 | 3 | - | - | 询价 |
| 32682 | Q32682 | 90-1000 | 0.02 | ±0.09 | 100 | 3 | 30 | 31 | 15 | 3 | - | - | 询价 |
| 32327 | Q32327 | 100-1000 | 0.02 | ±0.10 | 150 | 3 | 30 | 31 | 20 | 3 | - | - | 询价 |
| 32681 | Q32681 | 110-1000 | 0.02 | ±0.10 | 200 | 3 | 30 | 31 | 25 | 3 | - | - | 询价 |
