点击 订货号或厂家货号了解螺距规系列下各规格产品更多参数
| 订货号 | 厂家货号 | 测量范围（mm） | 组合 | 备注 | 市场价 | 促销价 | 购买 |

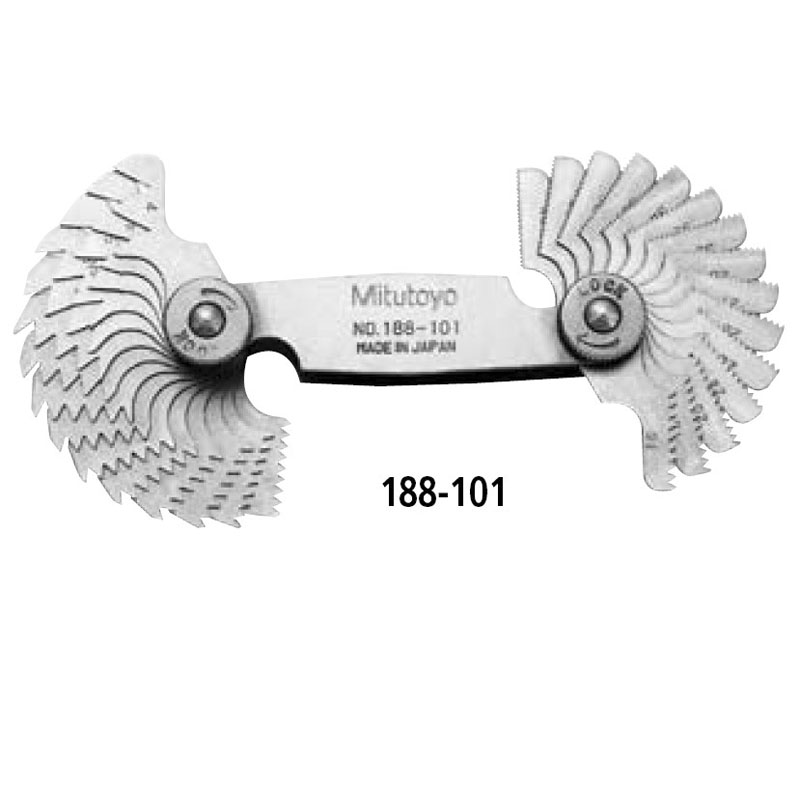

| 36904 | 188-101 | 4 - 42 TPI | 30 片: 4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 111/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30,32, 34, 36, 38, 40, 42 TPI | 惠氏螺距规 | - | - | 询价 |
| 36905 | 188-102 | 4 - 60 TPI | 28 片: 4, 41/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 34, 36,40, 48, 60 TPI | 惠氏螺距规 | - | - | 询价 |
| 36902 | 188-111 | 4 - 42 TPI | 30 片: 4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 111/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30,32, 34, 36, 38, 40, 42 TPI | 统一标准型螺距规 | - | - | 询价 |
| 36901 | 188-121 | 0.4 - 7mm | 18 片: 0.4, 0.5, 0.75, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm | 公制型螺距规 | - | - | 询价 |
| 36900 | 188-122 | 0.4 - 7mm | 21 片: 0.4, 0.5, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm | 公制型螺距规 | - | - | 询价 |
| 24262 | 188-130 | 0.35 - 6mm | 22 片: 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5,6mm 和60º 量块 | 公制型螺距规 | - | - | 询价 |
| 36903 | 188-151 | 0.4 - 7mm/4 - 42 TPI | 51 片: 包括 188-122 套装和 188-111 | 公制型和统一标准型螺距规 | - | - | 询价 |
注：可选择（188-111）公制型和统一标准螺距规套装，包括188-122（公制型）和188-111（统一标准型）。
