点击 订货号或厂家货号了解V型游标卡尺系列下各规格产品更多参数

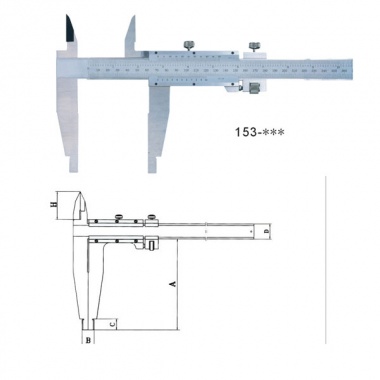

| 订货号 | 厂家货号 | 测量范围(mm) | 分度值(mm) | 精度(mm) | A(mm) | B(mm) | C(mm) | H(mm) | D(mm) | 备注 | 市场价 | 促销价 | 购买 |
| 3539 | 153-125C | 0-200 | 0.02 | ±0.03mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3540 | 153-125C-1 | 0-200 | 0.02 | ±0.04mm | 90 | 10 | 10 | 22 | 17 | 超长量爪型 | - | - | 询价 |
| 3537 | 153-125S | 0-200 | 0.02 | ±0.03mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3538 | 153-125S-1 | 0-200 | 0.02 | ±0.04mm | 90 | 10 | 10 | 22 | 17 | 超长量爪型 | - | - | 询价 |
| 3543 | 153-135C | 0-300 | 0.02 | ±0.04mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3544 | 153-135C-1 | 0-300 | 0.02 | ±0.06mm | 90 | 10 | 10 | 22 | 17 | 超长量爪型 | - | - | 询价 |
| 3541 | 153-135S | 0-300 | 0.02 | ±0.04mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3542 | 153-135S | 0-300 | 0.02 | ±0.06mm | 90 | 10 | 10 | 22 | 17 | 超长量爪型 | - | - | 询价 |
| 3548 | 153-150C | 0-500 | 0.02 | ±0.05mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3549 | 153-150C-1 | 0-500 | 0.02 | ±0.05mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3550 | 153-150C-2 | 0-500 | 0.02 | ±0.08mm | 150 | 10 | 12 | 40 | 25 | 超长量爪型 | - | - | 询价 |
| 3545 | 153-150S | 0-500 | 0.02 | ±0.05mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3546 | 153-150S-1 | 0-500 | 0.02 | ±0.05mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3547 | 153-150S-2 | 0-500 | 0.02 | ±0.08mm | 150 | 10 | 12 | 40 | 25 | 超长量爪型 | - | - | 询价 |
| 3554 | 153-155C | 0-600 | 0.02 | ±0.05mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3555 | 153-155C-1 | 0-600 | 0.02 | ±0.05mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3556 | 153-155C-2 | 0-600 | 0.02 | ±0.10mm | 150 | 10 | 12 | 40 | 25 | 超长量爪型 | - | - | 询价 |
| 3551 | 153-155S | 0-600 | 0.02 | ±0.05mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3552 | 153-155S-1 | 0-600 | 0.02 | ±0.05mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3553 | 153-155S-2 | 0-600 | 0.02 | ±0.10mm | 150 | 10 | 12 | 40 | 25 | 超长量爪型 | - | - | 询价 |
| 3560 | 153-160C | 0-800 | 0.02 | ±0.06mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3561 | 153-160C-1 | 0-800 | 0.02 | ±0.06mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3562 | 153-160C-2 | 0-800 | 0.02 | ±0.11mm | 200 | 20 | 18 | 47 | 32 | 超长量爪型 | - | - | 询价 |
| 3557 | 153-160S | 0-800 | 0.02 | ±0.06mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3558 | 153-160S-1 | 0-800 | 0.02 | ±0.06mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3559 | 153-160S-2 | 0-800 | 0.02 | ±0.11mm | 200 | 20 | 18 | 47 | 32 | 超长量爪型 | - | - | 询价 |
| 3566 | 153-165C | 0-1000 | 0.02 | ±0.078mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3567 | 153-165C-1 | 0-1000 | 0.02 | ±0.078mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3568 | 153-165C-2 | 0-1000 | 0.02 | ±0.11mm | 200 | 20 | 18 | 47 | 32 | 超长量爪型 | - | - | 询价 |
| 3563 | 153-165S | 0-1000 | 0.02 | ±0.078mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3564 | 153-165S-1 | 0-1000 | 0.02 | ±0.078mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3565 | 153-165S-2 | 0-1000 | 0.02 | ±0.11mm | 200 | 20 | 18 | 47 | 32 | 超长量爪型 | - | - | 询价 |
| 3572 | 153-170C | 0-1500 | 0.02 | ±0.11mm | 125 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3573 | 153-170C-1 | 0-1500 | 0.02 | ±0.11mm | 150 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3574 | 153-170C-2 | 0-1500 | 0.02 | ±0.13mm | 200 | 30 | 20 | 54 | 41.5 | 超长量爪型 | - | - | 询价 |
| 3569 | 153-170S | 0-1500 | 0.02 | ±0.11mm | 125 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3570 | 153-170S-1 | 0-1500 | 0.02 | ±0.11mm | 150 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3571 | 153-170S-2 | 0-1500 | 0.02 | ±0.13mm | 200 | 30 | 20 | 54 | 41.5 | 超长量爪型 | - | - | 询价 |
| 3578 | 153-175C | 0-2000 | 0.02 | ±0.14mm | 150 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3579 | 153-175C-1 | 0-2000 | 0.02 | ±0.14mm | 200 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3580 | 153-175C-2 | 0-2000 | 0.02 | ±0.20mm | 300 | 30 | 20 | 54 | 52 | 超长量爪型 | - | - | 询价 |
| 3575 | 153-175S | 0-2000 | 0.02 | ±0.14mm | 150 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3576 | 153-175S-1 | 0-2000 | 0.02 | ±0.14mm | 200 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3577 | 153-175S-2 | 0-2000 | 0.02 | ±0.20mm | 300 | 30 | 20 | 54 | 52 | 超长量爪型 | - | - | 询价 |
| 3584 | 153-180C | 0-2500 | 0.02 | ±0.22mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3585 | 153-180C-1 | 0-2500 | 0.02 | ±0.22mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3586 | 153-180C-2 | 0-2500 | 0.02 | ±0.30mm | 300 | 30 | 20 | 73 | 52 | 超长量爪型 | - | - | 询价 |
| 3581 | 153-180S | 0-2500 | 0.02 | ±0.22mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3582 | 153-180S-1 | 0-2500 | 0.02 | ±0.22mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3583 | 153-180S-2 | 0-2500 | 0.02 | ±0.30mm | 300 | 30 | 20 | 73 | 52 | 超长量爪型 | - | - | 询价 |
| 3590 | 153-185C | 0-3000 | 0.02 | ±0.26mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3591 | 153-185C-1 | 0-3000 | 0.02 | ±0.26mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3592 | 153-185C-2 | 0-3000 | 0.02 | ±0.35mm | 300 | 30 | 20 | 73 | 52 | 超长量爪型 | - | - | 询价 |
| 3587 | 153-185S | 0-3000 | 0.02 | ±0.26mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3588 | 153-185S-1 | 0-3000 | 0.02 | ±0.26mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3589 | 153-185S-2 | 0-3000 | 0.02 | ±0.35mm | 300 | 30 | 20 | 73 | 52 | 超长量爪型 | - | - | 询价 |
| 3651 | 153-225C | 0-200 | 0.02/0.001" | ±0.03mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3652 | 153-225C-1 | 0-200 | 0.02/0.001" | ±0.04mm | 90 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3649 | 153-225S | 0-200 | 0.02/0.001" | ±0.03mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3650 | 153-225S-1 | 0-200 | 0.02/0.001" | ±0.04mm | 90 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3655 | 153-235C | 0-300 | 0.02/0.001" | ±0.03mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3656 | 153-235C-1 | 0-300 | 0.02/0.001" | ±0.06mm | 90 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3653 | 153-235S | 0-300 | 0.02/0.001" | ±0.03mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3654 | 153-235S-1 | 0-300 | 0.02/0.001" | ±0.06mm | 90 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3660 | 153-250C | 0-500 | 0.02/0.001" | ±0.05mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3661 | 153-250C-1 | 0-500 | 0.02/0.001" | ±0.05mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3662 | 153-250C-2 | 0-500 | 0.02/0.001" | ±0.08mm | 150 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3657 | 153-250S | 0-500 | 0.02/0.001" | ±0.05mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3658 | 153-250S-1 | 0-500 | 0.02/0.001" | ±0.05mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3659 | 153-250S-2 | 0-500 | 0.02/0.001" | ±0.08mm | 150 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3666 | 153-255C | 0-600 | 0.02/0.001" | ±0.05mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3667 | 153-255C-1 | 0-600 | 0.02/0.001" | ±0.05mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3668 | 153-255C-2 | 0-600 | 0.02/0.001" | ±0.10mm | 150 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3663 | 153-255S | 0-600 | 0.02/0.001" | ±0.05mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3664 | 153-255S-1 | 0-600 | 0.02/0.001" | ±0.05mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3665 | 153-255S-2 | 0-600 | 0.02/0.001" | ±0.10mm | 150 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3672 | 153-260C | 0-800 | 0.02/0.001" | ±0.06mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3673 | 153-260C-1 | 0-800 | 0.02/0.001" | ±0.06mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3674 | 153-260C-2 | 0-800 | 0.02/0.001" | ±0.11mm | 200 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3669 | 153-260S | 0-800 | 0.02/0.001" | ±0.06mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3670 | 153-260S-1 | 0-800 | 0.02/0.001" | ±0.06mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3671 | 153-260S-2 | 0-800 | 0.02/0.001" | ±0.11mm | 200 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3678 | 153-265C | 0-1000 | 0.02/0.001" | ±0.07mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3679 | 153-265C-1 | 0-1000 | 0.02/0.001" | ±0.07mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3680 | 153-265C-2 | 0-1000 | 0.02/0.001" | ±0.11mm | 200 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3675 | 153-265S | 0-1000 | 0.02/0.001" | ±0.07mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3676 | 153-265S-1 | 0-1000 | 0.02/0.001" | ±0.07mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3677 | 153-265S-2 | 0-1000 | 0.02/0.001" | ±0.11mm | 200 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3684 | 153-270C | 0-1500 | 0.02/0.001" | ±0.11mm | 125 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3685 | 153-270C-1 | 0-1500 | 0.02/0.001" | ±0.11mm | 150 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3686 | 153-270C-2 | 0-1500 | 0.02/0.001" | ±0.13mm | 200 | 30 | 20 | 54 | 41.5 | - | - | 询价 | |
| 3681 | 153-270S | 0-1500 | 0.02/0.001" | ±0.11mm | 125 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3682 | 153-270S-1 | 0-1500 | 0.02/0.001" | ±0.11mm | 150 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3683 | 153-270S-2 | 0-1500 | 0.02/0.001" | ±0.13mm | 200 | 30 | 20 | 54 | 41.5 | - | - | 询价 | |
| 3690 | 153-275C | 0-2000 | 0.02/0.001" | ±0.14mm | 150 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3691 | 153-275C-1 | 0-2000 | 0.02/0.001" | ±0.14mm | 200 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3692 | 153-275C-2 | 0-2000 | 0.02/0.001" | ±0.20mm | 300 | 30 | 20 | 54 | 52 | - | - | 询价 | |
| 3687 | 153-275S | 0-2000 | 0.02/0.001" | ±0.14mm | 150 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3688 | 153-275S-1 | 0-2000 | 0.02/0.001" | ±0.14mm | 200 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3689 | 153-275S-2 | 0-2000 | 0.02/0.001" | ±0.20mm | 300 | 30 | 20 | 54 | 52 | - | - | 询价 | |
| 3696 | 153-280C | 0-2500 | 0.02/0.001" | ±0.22mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3697 | 153-280C-1 | 0-2500 | 0.02/0.001" | ±0.22mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3698 | 153-280C-2 | 0-2500 | 0.02/0.001" | ±0.30mm | 300 | 30 | 20 | 73 | 52 | - | - | 询价 | |
| 3693 | 153-280S | 0-2500 | 0.02/0.001" | ±0.22mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3694 | 153-280S-1 | 0-2500 | 0.02/0.001" | ±0.22mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3695 | 153-280S-2 | 0-2500 | 0.02/0.001" | ±0.30mm | 300 | 30 | 20 | 73 | 52 | - | - | 询价 | |
| 3702 | 153-285C | 0-3000 | 0.02/0.001" | ±0.26mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3703 | 153-285C-1 | 0-3000 | 0.02/0.001" | ±0.26mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3704 | 153-285C-2 | 0-3000 | 0.02/0.001" | ±0.35mm | 300 | 30 | 20 | 73 | 52 | - | - | 询价 | |
| 3699 | 153-285S | 0-3000 | 0.02/0.001" | ±0.26mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3700 | 153-285S-1 | 0-3000 | 0.02/0.001" | ±0.26mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3701 | 153-285S-2 | 0-3000 | 0.02/0.001" | ±0.35mm | 300 | 30 | 20 | 73 | 52 | - | - | 询价 | |
| 3483 | 153-525C | 0-200 | 0.05 | ±0.05mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3484 | 153-525C-1 | 0-200 | 0.05 | ±0.06mm | 90 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3481 | 153-525S | 0-200 | 0.05 | ±0.05mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3482 | 153-525S-1 | 0-200 | 0.05 | ±0.06mm | 90 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3487 | 153-535C | 0-300 | 0.05 | ±0.06mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3488 | 153-535C-1 | 0-300 | 0.05 | ±0.10mm | 90 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3485 | 153-535S | 0-300 | 0.05 | ±0.06mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3486 | 153-535S-1 | 0-300 | 0.05 | ±0.10mm | 90 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3492 | 153-550C | 0-500 | 0.05 | ±0.07mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3493 | 153-550C-1 | 0-500 | 0.05 | ±0.07mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3494 | 153-550C-2 | 0-500 | 0.05 | ±0.10mm | 150 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3489 | 153-550S | 0-500 | 0.05 | ±0.07mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3490 | 153-550S-1 | 0-500 | 0.05 | ±0.07mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3491 | 153-550S-2 | 0-500 | 0.05 | ±0.10mm | 150 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3498 | 153-555C | 0-600 | 0.05 | ±0.08mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3499 | 153-555C-1 | 0-600 | 0.05 | ±0.08mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3500 | 153-555C-2 | 0-600 | 0.05 | ±0.13mm | 150 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3495 | 153-555S | 0-600 | 0.05 | ±0.08mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3496 | 153-555S-1 | 0-600 | 0.05 | ±0.08mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3497 | 153-555S-2 | 0-600 | 0.05 | ±0.13mm | 150 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3504 | 153-560C | 0-800 | 0.05 | ±0.09mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3505 | 153-560C-1 | 0-800 | 0.05 | ±0.09mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3506 | 153-560C-2 | 0-800 | 0.05 | ±0.14mm | 200 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3501 | 153-560S | 0-800 | 0.05 | ±0.09mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3502 | 153-560S-1 | 0-800 | 0.05 | ±0.09mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3503 | 153-560S-2 | 0-800 | 0.05 | ±0.14mm | 200 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3510 | 153-565C | 0-1000 | 0.05 | ±0.10mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3511 | 153-565C-1 | 0-1000 | 0.05 | ±0.10mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3512 | 153-565C-2 | 0-1000 | 0.05 | ±0.14mm | 200 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3507 | 153-565S | 0-1000 | 0.05 | ±0.10mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3508 | 153-565S-1 | 0-1000 | 0.05 | ±0.10mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3509 | 153-565S-2 | 0-1000 | 0.05 | ±0.14mm | 200 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3516 | 153-570C | 0-1500 | 0.05 | ±0.16mm | 125 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3517 | 153-570C-1 | 0-1500 | 0.05 | ±0.16mm | 150 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3518 | 153-570C-2 | 0-1500 | 0.05 | ±0.18mm | 200 | 30 | 20 | 54 | 41.5 | - | - | 询价 | |
| 3513 | 153-570S | 0-1500 | 0.05 | ±0.16mm | 125 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3514 | 153-570S-1 | 0-1500 | 0.05 | ±0.16mm | 150 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3515 | 153-570S-2 | 0-1500 | 0.05 | ±0.18mm | 200 | 30 | 20 | 54 | 41.5 | - | - | 询价 | |
| 3522 | 153-575C | 0-2000 | 0.05 | ±0.20mm | 150 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3523 | 153-575C-1 | 0-2000 | 0.05 | ±0.20mm | 200 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3524 | 153-575C-2 | 0-2000 | 0.05 | ±0.26mm | 300 | 30 | 20 | 54 | 52 | - | - | 询价 | |
| 3519 | 153-575S | 0-2000 | 0.05 | ±0.20mm | 150 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3520 | 153-575S-1 | 0-2000 | 0.05 | ±0.20mm | 200 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3521 | 153-575S-2 | 0-2000 | 0.05 | ±0.26mm | 300 | 30 | 20 | 54 | 52 | - | - | 询价 | |
| 3528 | 153-580C | 0-2500 | 0.05 | ±0.24mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3529 | 153-580C-1 | 0-2500 | 0.05 | ±0.24mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3530 | 153-580C-2 | 0-2500 | 0.05 | ±0.30mm | 300 | 30 | 20 | 73 | 52 | - | - | 询价 | |
| 3525 | 153-580S | 0-2500 | 0.05 | ±0.24mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3526 | 153-580S-1 | 0-2500 | 0.05 | ±0.24mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3527 | 153-580S-2 | 0-2500 | 0.05 | ±0.30mm | 300 | 30 | 20 | 73 | 52 | - | - | 询价 | |
| 3534 | 153-585C | 0-3000 | 0.05 | ±0.31mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3535 | 153-585C-1 | 0-3000 | 0.05 | ±0.31mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3536 | 153-585C-2 | 0-3000 | 0.05 | ±0.35mm | 300 | 30 | 20 | 73 | 52 | - | - | 询价 | |
| 3531 | 153-585S | 0-3000 | 0.05 | ±0.31mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3532 | 153-585S-1 | 0-3000 | 0.05 | ±0.31mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3533 | 153-585S-2 | 0-3000 | 0.05 | ±0.35mm | 300 | 30 | 20 | 73 | 52 | - | - | 询价 | |
| 3595 | 153-625C | 0-200 | 0.05/1/128" | ±0.05mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3596 | 153-625C-1 | 0-200 | 0.05/1/128" | ±0.06mm | 90 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3593 | 153-625S | 0-200 | 0.05/1/128" | ±0.05mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3594 | 153-625S-1 | 0-200 | 0.05/1/128" | ±0.06mm | 90 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3599 | 153-635C | 0-300 | 0.05/1/128" | ±0.06mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3600 | 153-635C-1 | 0-300 | 0.05/1/128" | ±0.10mm | 90 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3597 | 153-635S | 0-300 | 0.05/1/128" | ±0.06mm | 60 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3598 | 153-635S-1 | 0-300 | 0.05/1/128" | ±0.10mm | 90 | 10 | 10 | 22 | 17 | - | - | 询价 | |
| 3604 | 153-650C | 0-500 | 0.05/1/128" | ±0.07mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3605 | 153-650C | 0-500 | 0.05/1/128" | ±0.07mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3606 | 153-650C | 0-500 | 0.05/1/128" | ±0.10mm | 150 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3601 | 153-650S | 0-500 | 0.05/1/128" | ±0.07mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3602 | 153-650S | 0-500 | 0.05/1/128" | ±0.07mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3603 | 153-650S | 0-500 | 0.05/1/128" | ±0.10mm | 150 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3610 | 153-655C | 0-600 | 0.05/1/128" | ±0.08mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3611 | 153-655C-1 | 0-600 | 0.05/1/128" | ±0.08mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3612 | 153-655C-2 | 0-600 | 0.05/1/128" | ±0.13mm | 150 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3607 | 153-655S | 0-600 | 0.05/1/128" | ±0.08mm | 100 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3608 | 153-655S-1 | 0-600 | 0.05/1/128" | ±0.08mm | 125 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3609 | 153-655S-2 | 0-600 | 0.05/1/128" | ±0.13mm | 150 | 10 | 12 | 40 | 25 | - | - | 询价 | |
| 3616 | 153-660C | 0-800 | 0.05/1/128" | ±0.09mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3617 | 153-660C-1 | 0-800 | 0.05/1/128" | ±0.09mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3618 | 153-660C-2 | 0-800 | 0.05/1/128" | ±0.10mm | 200 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3613 | 153-660S | 0-800 | 0.05/1/128" | ±0.09mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3614 | 153-660S-1 | 0-800 | 0.05/1/128" | ±0.09mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3615 | 153-660S-2 | 0-800 | 0.05/1/128" | ±0.10mm | 200 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3622 | 153-665C | 0-1000 | 0.05/1/128" | ±0.10mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3623 | 153-665C-1 | 0-1000 | 0.05/1/128" | ±0.10mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3624 | 153-665C-2 | 0-1000 | 0.05/1/128" | ±0.10mm | 200 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3619 | 153-665S | 0-1000 | 0.05/1/128" | ±0.10mm | 125 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3620 | 153-665S-1 | 0-1000 | 0.05/1/128" | ±0.10mm | 150 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3621 | 153-665S-2 | 0-1000 | 0.05/1/128" | ±0.10mm | 200 | 20 | 18 | 47 | 32 | - | - | 询价 | |
| 3628 | 153-670C | 0-1500 | 0.05/1/128" | ±0.16mm | 125 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3629 | 153-670C-1 | 0-1500 | 0.05/1/128" | ±0.16mm | 150 | 20 | 21 | 47 | 32 | - | - | 询价 | |
| 3630 | 153-670C-2 | 0-1500 | 0.05/1/128" | ±0.18mm | 200 | 30 | 22 | 54 | 41.5 | - | - | 询价 | |
| 3625 | 153-670S | 0-1500 | 0.05/1/128" | ±0.16mm | 125 | 20 | 20 | 47 | 32 | - | - | 询价 | |
| 3626 | 153-670S-1 | 0-1500 | 0.05/1/128" | ±0.16mm | 150 | 20 | 21 | 47 | 32 | - | - | 询价 | |
| 3627 | 153-670S-2 | 0-1500 | 0.05/1/128" | ±0.18mm | 200 | 30 | 22 | 54 | 41.5 | - | - | 询价 | |
| 3634 | 153-675C | 0-2000 | 0.05/1/128" | ±0.20mm | 150 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3635 | 153-675C-1 | 0-2000 | 0.05/1/128" | ±0.20mm | 200 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3636 | 153-675C-2 | 0-2000 | 0.05/1/128" | ±0.26mm | 300 | 30 | 20 | 54 | 52 | - | - | 询价 | |
| 3631 | 153-675S | 0-2000 | 0.05/1/128" | ±0.20mm | 150 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3632 | 153-675S-1 | 0-2000 | 0.05/1/128" | ±0.20mm | 200 | 20 | 20 | 54 | 52 | - | - | 询价 | |
| 3633 | 153-675S-2 | 0-2000 | 0.05/1/128" | ±0.26mm | 300 | 30 | 20 | 54 | 52 | - | - | 询价 | |
| 3640 | 153-680C | 0-2500 | 0.05/1/128" | ±0.24mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3641 | 153-680C | 0-2500 | 0.05/1/128" | ±0.24mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3642 | 153-680C | 0-2500 | 0.05/1/128" | ±0.30mm | 300 | 30 | 20 | 73 | 52 | - | - | 询价 | |
| 3637 | 153-680S | 0-2500 | 0.05/1/128" | ±0.24mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3638 | 153-680S | 0-2500 | 0.05/1/128" | ±0.24mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3639 | 153-680S | 0-2500 | 0.05/1/128" | ±0.30mm | 300 | 30 | 20 | 73 | 52 | - | - | 询价 | |
| 3646 | 153-685C | 0-3000 | 0.05/1/128" | ±0.31mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3647 | 153-685C-1 | 0-3000 | 0.05/1/128" | ±0.31mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3648 | 153-685C-2 | 0-3000 | 0.05/1/128" | ±0.35mm | 300 | 30 | 20 | 73 | 52 | - | - | 询价 | |
| 3643 | 153-685S | 0-3000 | 0.05/1/128" | ±0.31mm | 150 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3644 | 153-685S-1 | 0-3000 | 0.05/1/128" | ±0.31mm | 200 | 20 | 20 | 73 | 52 | - | - | 询价 | |
| 3645 | 153-685S-2 | 0-3000 | 0.05/1/128" | ±0.35mm | 300 | 30 | 20 | 73 | 52 | - | - | 询价 |
