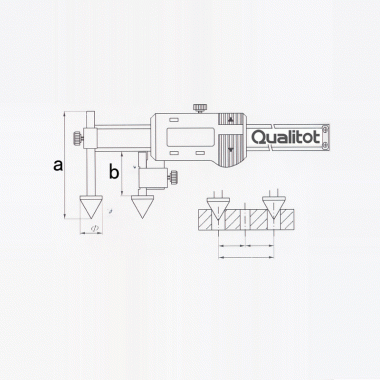

点击 订货号或厂家货号了解中心距锥测头数显卡尺(非标定制)系列下各规格产品更多参数
订货号 | 厂家货号 | 测量范围(mm) | 分辨力(mm) | 允许误差(mm) | a(mm) | b(mm) | Φ(mm) | 市场价 | 促销价 | 购买 |
26182 | Q26182 | 20-150 | 0.01 | ±0.05 | 90 | 30 | 20 | - | - | 询价 |
32050 | Q32050 | 30-150 | 0.01 | ±0.05 | 90 | 30 | 30 | - | - | 询价 |
32053 | Q32053 | 40-150 | 0.01 | ±0.05 | 90 | 30 | 40 | - | - | 询价 |
32054 | Q32054 | 50-150 | 0.01 | ±0.05 | 90 | 30 | 50 | - | - | 询价 |
26183 | Q26183 | 20-200 | 0.01 | ±0.07 | 90 | 30 | 20 | - | - | 询价 |
32055 | Q32055 | 30-200 | 0.01 | ±0.07 | 90 | 30 | 30 | - | - | 询价 |
32056 | Q32056 | 40-200 | 0.01 | ±0.07 | 90 | 30 | 40 | - | - | 询价 |
32057 | Q32057 | 50-200 | 0.01 | ±0.07 | 90 | 30 | 50 | - | - | 询价 |
26184 | Q26184 | 20-300 | 0.01 | ±0.09 | 90 | 30 | 20 | - | - | 询价 |
32082 | Q32082 | 30-300 | 0.01 | ±0.09 | 90 | 30 | 30 | - | - | 询价 |
32083 | Q32083 | 40-300 | 0.01 | ±0.09 | 90 | 30 | 40 | - | - | 询价 |
32084 | Q32084 | 50-300 | 0.01 | ±0.09 | 90 | 30 | 50 | - | - | 询价 |
26185 | Q26185 | 20-500 | 0.01 | ±0.09 | 90 | 30 | 20 | - | - | 询价 |
32058 | Q32058 | 30-500 | 0.01 | ±0.09 | 90 | 30 | 30 | - | - | 询价 |
32059 | Q32059 | 40-500 | 0.01 | ±0.09 | 90 | 30 | 40 | - | - | 询价 |
32060 | Q32060 | 50-500 | 0.01 | ±0.09 | 90 | 30 | 50 | - | - | 询价 |
32062 | Q32062 | 20-600 | 0.01 | ±0.09 | 90 | 30 | 20 | - | - | 询价 |
32063 | Q32063 | 30-600 | 0.01 | ±0.09 | 90 | 30 | 30 | - | - | 询价 |
32064 | Q32064 | 40-600 | 0.01 | ±0.09 | 90 | 30 | 40 | - | - | 询价 |
32065 | Q32065 | 50-600 | 0.01 | ±0.09 | 90 | 30 | 50 | - | - | 询价 |
32206 | Q32206 | 20-800 | 0.01 | ±0.13 | 90 | 30 | 20 | - | - | 询价 |
32207 | Q32207 | 30-800 | 0.01 | ±0.13 | 90 | 30 | 30 | - | - | 询价 |
32208 | Q32208 | 40-800 | 0.01 | ±0.13 | 90 | 30 | 40 | - | - | 询价 |
32209 | Q32209 | 50-800 | 0.01 | ±0.13 | 90 | 30 | 50 | - | - | 询价 |
26392 | Q26392 | 20-1000 | 0.01 | ±0.13 | 90 | 30 | 20 | - | - | 询价 |
32067 | Q32067 | 30-1000 | 0.01 | ±0.13 | 90 | 30 | 30 | - | - | 询价 |
32068 | Q32068 | 40-1000 | 0.01 | ±0.13 | 90 | 30 | 40 | - | - | 询价 |
32069 | Q32069 | 50-1000 | 0.01 | ±0.13 | 90 | 30 | 50 | - | - | 询价 |
26393 | Q26393 | 20-1500 | 0.01 | ±0.18 | 90 | 30 | 20 | - | - | 询价 |
32070 | Q32070 | 30-1500 | 0.01 | ±0.18 | 90 | 30 | 30 | - | - | 询价 |
32073 | Q32073 | 40-1500 | 0.01 | ±0.18 | 90 | 30 | 40 | - | - | 询价 |
32074 | Q32074 | 50-1500 | 0.01 | ±0.18 | 90 | 30 | 50 | - | - | 询价 |
32076 | Q32076 | 20-2000 | 0.01 | ±0.18 | 90 | 30 | 20 | - | - | 询价 |
32077 | Q32077 | 30-2000 | 0.01 | ±0.18 | 90 | 30 | 30 | - | - | 询价 |
32078 | Q32078 | 40-2000 | 0.01 | ±0.18 | 90 | 30 | 40 | - | - | 询价 |
32080 | Q32080 | 50-2000 | 0.01 | ±0.18 | 90 | 30 | 50 | - | - | 询价 |
