点击 订货号或厂家货号了解机器视觉镜头MV系列下各规格产品更多参数
| 订货号 | 厂家货号 | 市场价 | 促销价 | 购买 |
| 39364 | MV | - | - | 询价 |
主要光学参数
|
型号Model |
焦距Focus |
光圈 Aperture |
放大倍数Magnification |
最近距离 Close |
视野 Eyeshot(V×H) |
||
|
最大兼容摄相机尺寸
Max. compatible camera: 2/3"
接头/ Mount: C-mount
|
25mm |
F1.4~关闭/Close |
0.23× |
0.13m |
15°× 20° |
||
|
MV3521 |
35mm |
F2.1~关闭/Close |
0.168× |
0.245m |
10.5°× 14° |
||
|
MV4526 |
45mm |
F2.6~关闭/Close |
0.134× |
0.379m |
8.4°× 11.2° |
||
|

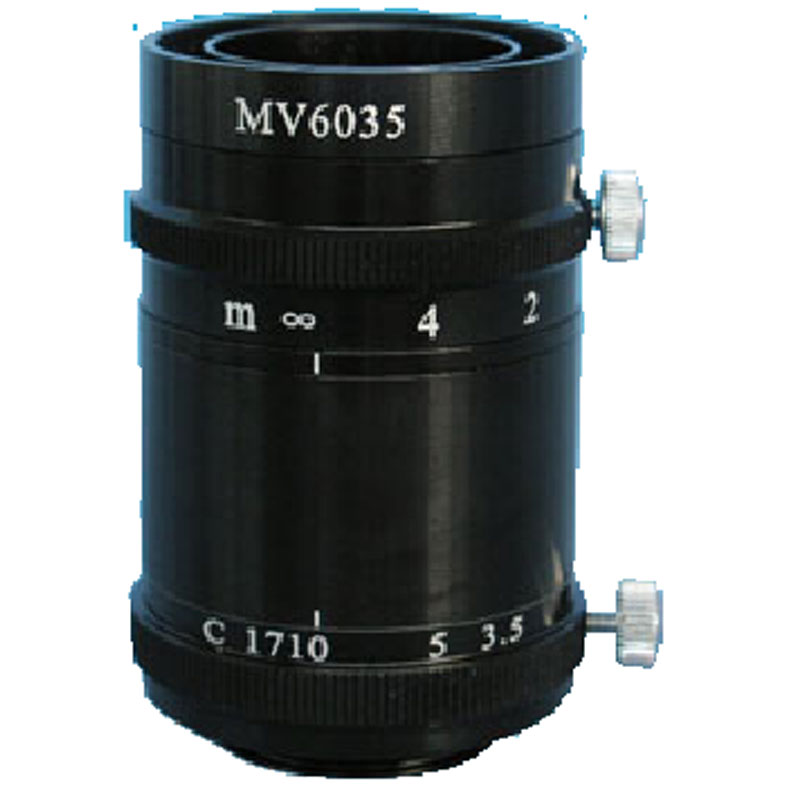

MV6035 |
60mm |
F3.5~关闭/Close |
0.1× |
0.661m |
6.3°× 8.4° |
最大兼容摄相机尺寸
Max. compatible camera: 2/3"
接头/ Mount: C-mount

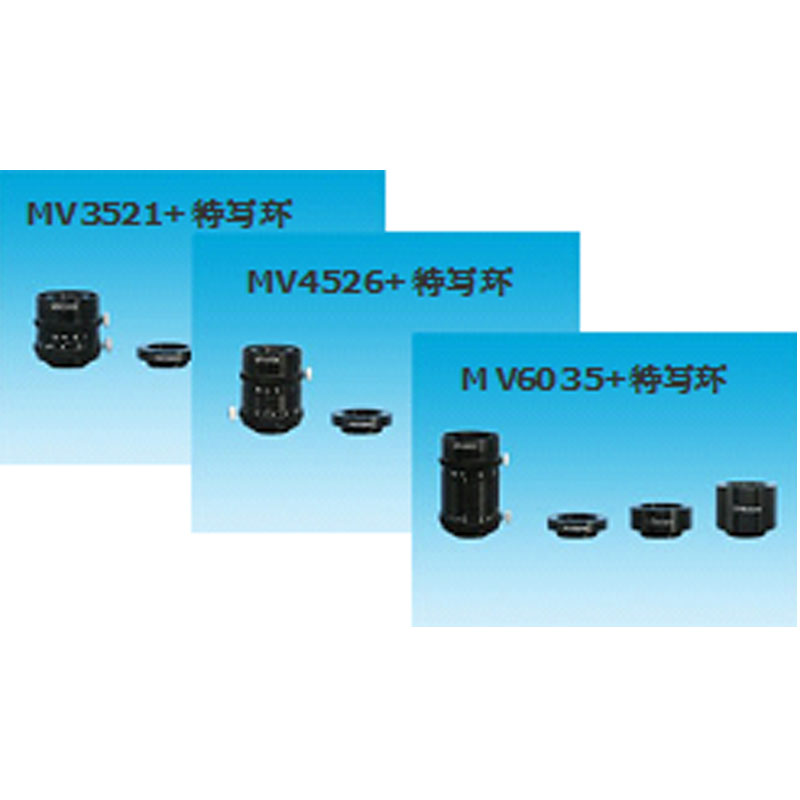

使用特写环时|
特写环 Close-up ring(mm) |
MV2514 |
MV3521 |
MV4526 |
MV6035 |
||||||||
|
放大倍数Mag. |
WD (mm) |
视野Eyeshot(L×W mm) 1/3" CCD |
放大倍数Mag. |
WD (mm) |
视野Eyeshot(L×W mm) 1/3"CCD |
放大倍数Mag. |
WD (mm) |
视野Eyeshot(L×W mm) 1/3" CCD |
放大倍数Mag. |
WD (mm) |
视野Eyeshot(L×W mm) 1/3" CCD |
|
|
0 |
|
∞ |
|
|
∞ |
|
|
∞ |
|
|
∞ |
|
|
0.23× |
130 |
15.6×20.8 |
0.17× |
245 |
21.2×28.2 |
0.13× |
379 |
27.7×36.9 |
0.1× |
661 |
36×48 |
|
|
6 |
0.23× |
130 |
15.6×20.8 |
0.17× |
245 |
21.2×28.2 |
0.13× |
379 |
27.7×36.9 |
0.1× |
661 |
36×48 |
|
0.89× |
50 |
4×5.4 |
0.34× |
139 |
10.6×14.1 |
0.27× |
212 |
13.3×17.8 |
0.2× |
360 |
18×24 |
|
|
12 |
|
|
|
0.34× |
139 |
10.6×14.1 |
0.27× |
212 |
13.3×17.8 |
0.2× |
360 |
18×24 |
|
|
|
|
0.51× |
104 |
7.1×9.4 |
0.4× |
156 |
9×12 |
0.3× |
260 |
12×16 |
|
|
18 |
|
|
|
0.51× |
104 |
7.1×9.4 |
0.4× |
156 |
9×12 |
0.3× |
260 |
12×16 |
|
(6+12) |
|
|
|
0.67× |
86 |
5.4×7.2 |
0.53× |
128 |
6.8×9.1 |
0.4× |
210 |
9×12 |
|
24 |
|
|
|
0.67× |
86 |
5.4×7.2 |
0.53× |
128 |
6.8×9.1 |
0.4× |
210 |
9×12 |
|
|
| |||||||||||
