点击 订货号或厂家货号了解百分表（0-3/0-5/0-10mm）系列下各规格产品更多参数

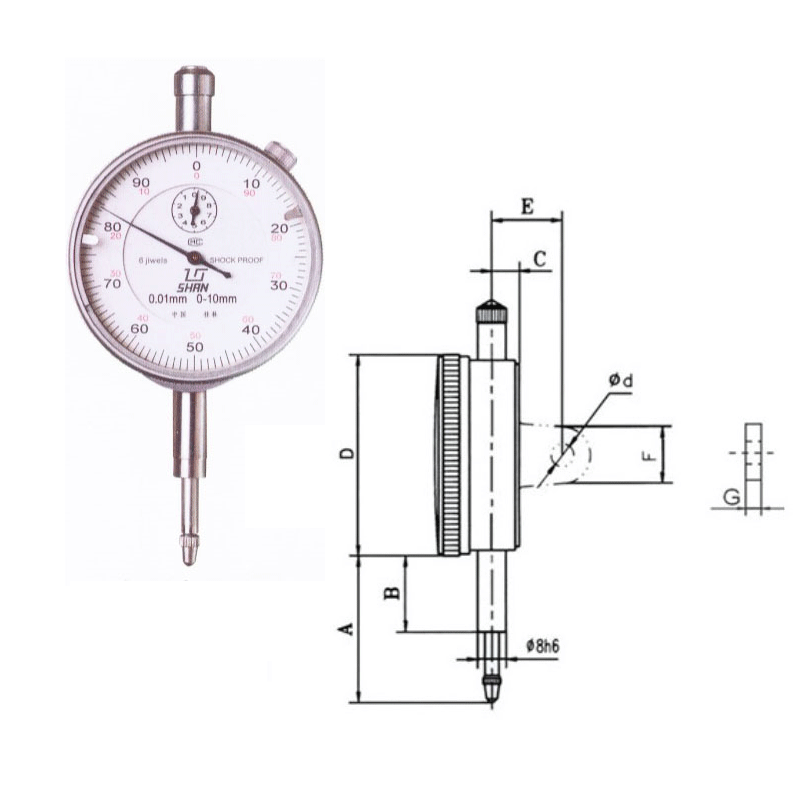

| 订货号 | 厂家货号 | 测量范围(mm) | 分度值(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | d(mm) | G(mm) | 精度 | 市场价 | 促销价 | 购买 |
| 3128 | 513D-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | ￥149.00 | 124.00 | 加入购物车 |
| 3127 | 513D-051 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | ￥142.00 | 118.00 | 加入购物车 |
| 3126 | 513D-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | ￥134.00 | 112.00 | 加入购物车 |
| 3117 | 510D-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
| 3118 | 510D-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
| 3119 | 510D-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
| 3120 | 511D-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
| 3121 | 511D-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
| 3122 | 511D-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
| 3123 | 512D-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
| 3124 | 512D-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
| 3125 | 512D-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
| 3129 | 514D-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
| 3130 | 514D-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
| 3131 | 514D-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
| 18972 | 515D-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14um | - | - | 询价 |
| 18973 | 515D-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16um | - | - | 询价 |
| 18974 | 515D-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 18975 | 516D-060 | 0-3 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 14um | - | - | 询价 |
| 18976 | 516D-061 | 0-5 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 16um | - | - | 询价 |
| 18977 | 516D-063 | 0-10 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 18978 | 517D-060 | 0-3 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 14um | - | - | 询价 |
| 18979 | 517D-061 | 0-5 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 16um | - | - | 询价 |
| 18980 | 517D-063 | 0-10 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 18981 | 518D-060 | 0-3 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 14um | - | - | 询价 |
| 18982 | 518D-061 | 0-5 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 16um | - | - | 询价 |
| 18983 | 518D-063 | 0-10 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 18984 | 519D-060 | 0-3 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 14um | - | - | 询价 |
| 18986 | 519D-061 | 0-5 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 18985 | 519D-063 | 0-10 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 18987 | 520D-060 | 0-3 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 14um | - | - | 询价 |
| 18988 | 520D-061 | 0-5 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 16um | - | - | 询价 |
| 18989 | 520D-063 | 0-10 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 18990 | 521D-060 | 0-3 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 14um | - | - | 询价 |
| 18991 | 521D-061 | 0-5 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 16um | - | - | 询价 |
| 18992 | 521D-063 | 0-10 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 18993 | 522D-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14um | - | - | 询价 |
| 18994 | 522D-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16um | - | - | 询价 |
| 18995 | 522D-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 18996 | 523D-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14um | - | - | 询价 |
| 18997 | 523D-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16um | - | - | 询价 |
| 18998 | 523D-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 18999 | 524D-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14um | - | - | 询价 |
| 19000 | 524D-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16um | - | - | 询价 |
| 19001 | 524D-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 19002 | 525D-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14um | - | - | 询价 |
| 19003 | 525D-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16um | - | - | 询价 |
| 19004 | 525D-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 19005 | 526D-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14um | - | - | 询价 |
| 19006 | 526D-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16um | - | - | 询价 |
| 19007 | 526D-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 19008 | 527D-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14um | - | - | 询价 |
| 19009 | 527D-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
| 19010 | 527D-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20um | - | - | 询价 |
