点击 订货号或厂家货号了解普通型百分表系列下各规格产品更多参数

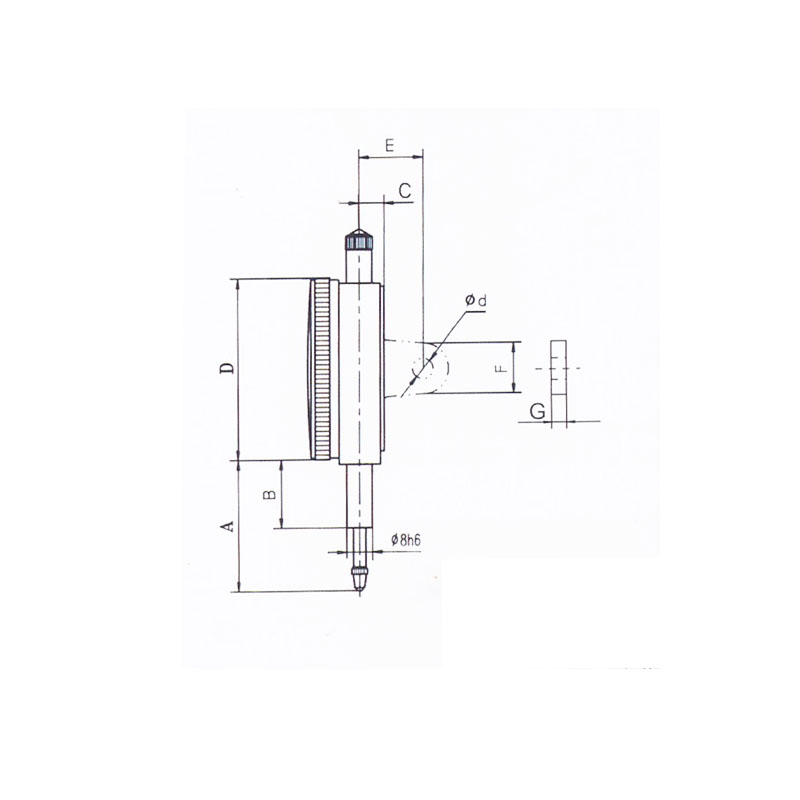

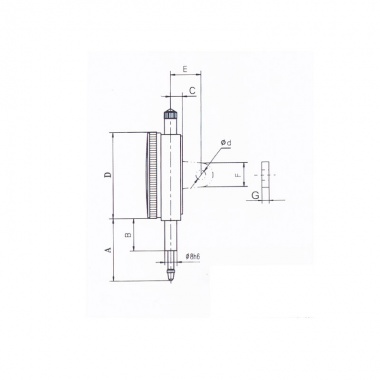

订货号 | 厂家货号 | 测量范围(mm) | 分度值(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | d(mm) | G(mm) | 精度 | 市场价 | 促销价 | 购买 |

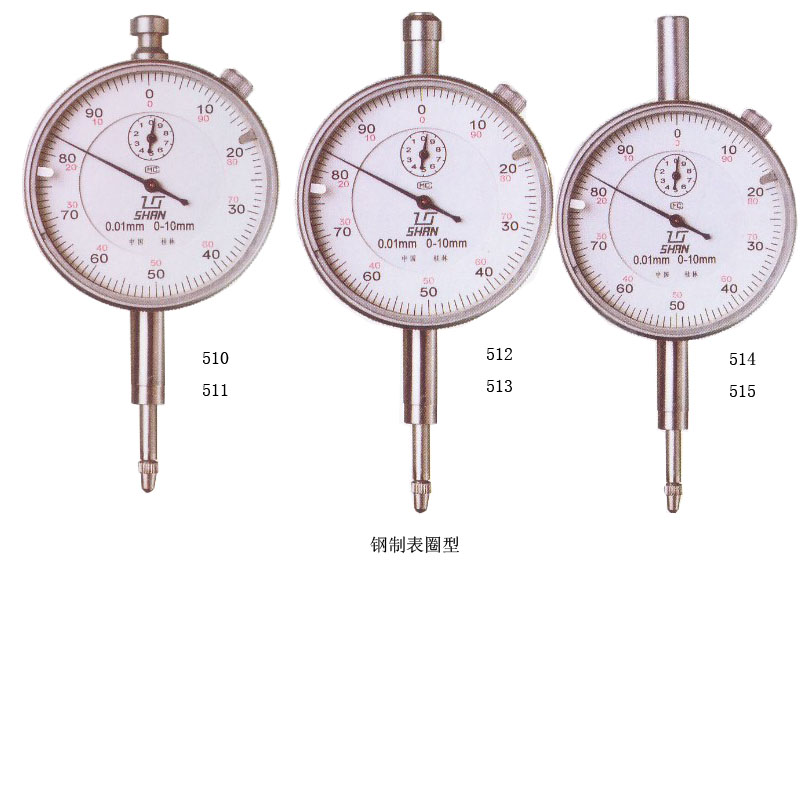

3132 | 510-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
3133 | 510-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
3134 | 510-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
3135 | 511-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
3136 | 511-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
3137 | 511-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
3138 | 512-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
3140 | 512-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
3141 | 512-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
3142 | 513-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18932 | 513-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
3144 | 513-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
3145 | 514-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
3146 | 514-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
3147 | 514-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
18933 | 515-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18934 | 515-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
18935 | 515-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |

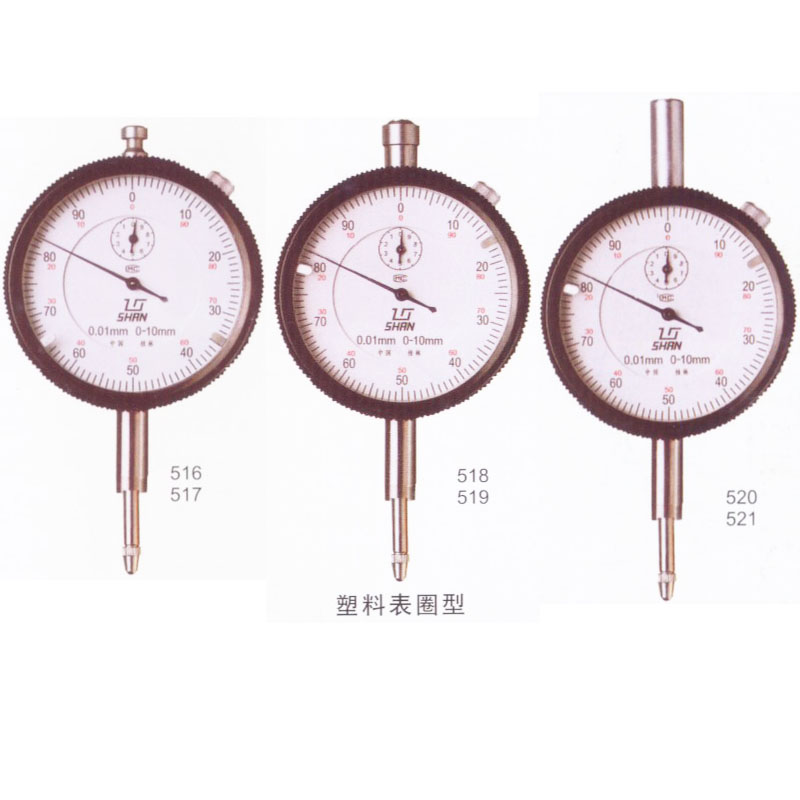

18936 | 516-060 | 0-3 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18937 | 516-061 | 0-5 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
18938 | 516-063 | 0-10 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
18939 | 517-060 | 0-3 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18940 | 517-061 | 0-5 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
18941 | 517-063 | 0-10 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
18942 | 518-060 | 0-3 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18943 | 518-061 | 0-5 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
18944 | 518-063 | 0-10 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
18945 | 519-060 | 0-3 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18946 | 519-061 | 0-5 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
18947 | 519-063 | 0-10 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
18948 | 520-060 | 0-3 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18949 | 520-061 | 0-5 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
18950 | 520-063 | 0-10 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
18951 | 521-060 | 0-3 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18952 | 521-061 | 0-5 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
18953 | 521-063 | 0-10 | 0.01 | 40 | 19.5 | 8.2 | Φ60 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |

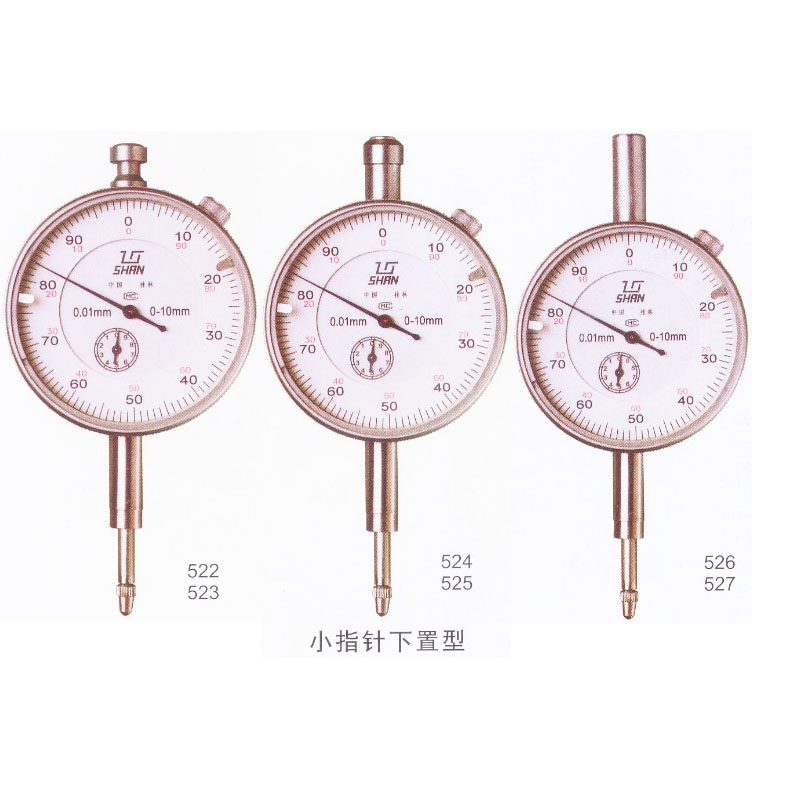

18954 | 522-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18955 | 522-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
18956 | 522-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
18957 | 523-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18958 | 523-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
18959 | 523-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
18960 | 524-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | - | - | 询价 | |
18961 | 524-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
18962 | 524-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
18963 | 525-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18964 | 525-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
18965 | 525-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
18966 | 526-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18967 | 526-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 16μm | - | - | 询价 |
18968 | 526-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
18969 | 527-060 | 0-3 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18970 | 527-061 | 0-5 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 14μm | - | - | 询价 |
18971 | 527-063 | 0-10 | 0.01 | 41.5 | 21 | 8.2 | Φ57 | 20 | 18 | 6.5/6.35 | 5 | 20μm | - | - | 询价 |
