点击 订货号或厂家货号了解长柄机用丝锥 225 226系列下各规格产品更多参数

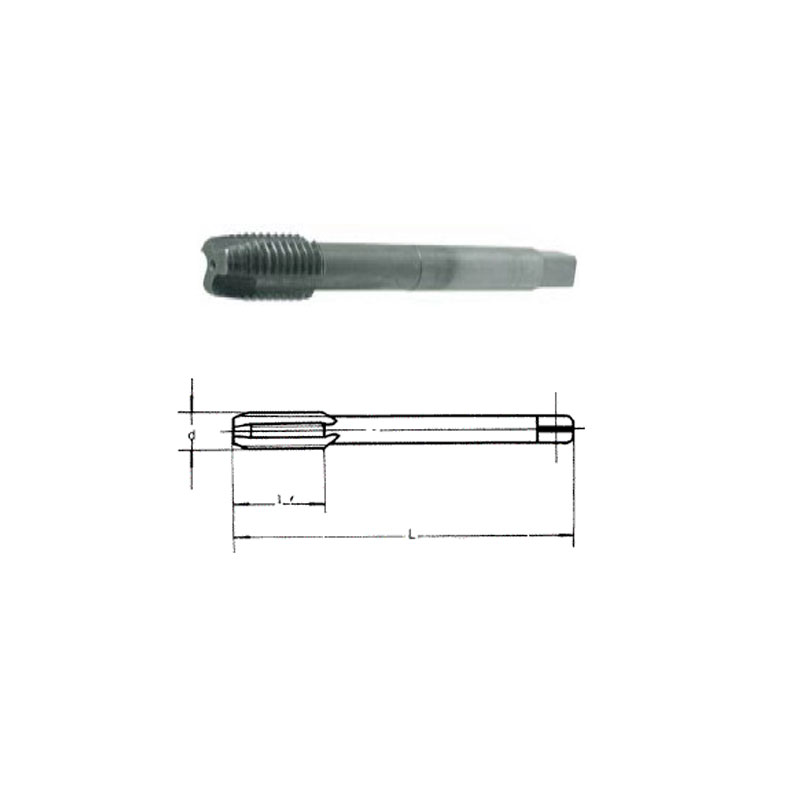

订货号 | 厂家货号 | 公称尺寸 d(mm) | 螺距 P(mm) | 全长 L(mm) | 刃长 l(mm) | 备注 | 市场价 | 促销价 | 购买 |
40493 | 225-M10 | M10 | 1.5 | 108 | 24 | 粗牙 | - | - | 询价 |
40494 | 225-M11 | M11 | 1.5 | 115 | 25 | 粗牙 | - | - | 询价 |
40495 | 225-M12 | M12 | 1.75 | 119 | 29 | 粗牙 | - | - | 询价 |
40496 | 225-M14 | M14 | 2 | 127 | 30 | 粗牙 | - | - | 询价 |
40497 | 225-M16 | M16 | 2 | 137 | 32 | 粗牙 | - | - | 询价 |
40498 | 225-M18 | M18 | 2.5 | 149 | 37 | 粗牙 | - | - | 询价 |
40499 | 225-M20 | M20 | 2.5 | 149 | 37 | 粗牙 | - | - | 询价 |
40500 | 225-M22 | M22 | 2.5 | 158 | 38 | 粗牙 | - | - | 询价 |
40501 | 225-M24 | M24 | 3 | 172 | 45 | 粗牙 | - | - | 询价 |
40487 | 225-M4 | M4 | 0.70 | 73 | 13 | 粗牙 | - | - | 询价 |
40488 | 225-M5 | M5 | 0.80 | 79 | 16 | 粗牙 | - | - | 询价 |
40489 | 225-M6 | M6 | 1 | 89 | 19 | 粗牙 | - | - | 询价 |
40490 | 225-M7 | M7 | 1 | 89 | 19 | 粗牙 | - | - | 询价 |
40491 | 225-M8 | M8 | 1.25 | 97 | 22 | 粗牙 | - | - | 询价 |
40492 | 225-M9 | M9 | 1.25 | 97 | 22 | 粗牙 | - | - | 询价 |
40509 | 226-M10*1 | M10*1 | 1 | 108 | 20 | 细牙 | - | - | 询价 |
40508 | 226-M10*1.25 | M10*1.25 | 1.25 | 108 | 20 | 细牙 | - | - | 询价 |
40511 | 226-M12*1.25 | M12*1.25 | 1.25 | 119 | 24 | 细牙 | - | - | 询价 |
40510 | 226-M12*1.5 | M12*1.5 | 1.5 | 119 | 29 | 细牙 | - | - | 询价 |
40513 | 226-M14*1.25 | M14*1.25 | 1.25 | 127 | 25 | 细牙 | - | - | 询价 |
40512 | 226-M14*1.5 | M14*1.5 | 1.5 | 127 | 30 | 细牙 | - | - | 询价 |
40514 | 226-M15*1.5 | M15*1.5 | 1.5 | 127 | 30 | 细牙 | - | - | 询价 |
40515 | 226-M16*1.5 | M16*1.5 | 1.5 | 137 | 32 | 细牙 | - | - | 询价 |
40516 | 226-M17*1.5 | M17*1.5 | 1.5 | 137 | 32 | 细牙 | - | - | 询价 |
40518 | 226-M18*1.5 | M18*1.5 | 1.5 | 149 | 29 | 细牙 | - | - | 询价 |
40517 | 226-M18*2 | M18*2 | 2 | 149 | 37 | 细牙 | - | - | 询价 |
40520 | 226-M20*1.5 | M20*1.5 | 1.5 | 149 | 29 | 细牙 | - | - | 询价 |
40519 | 226-M20*2 | M20*2 | 2 | 149 | 37 | 细牙 | - | - | 询价 |
40522 | 226-M22*1.5 | M22*1.5 | 1.5 | 158 | 33 | 细牙 | - | - | 询价 |
40521 | 226-M22*2 | M22*2 | 2 | 158 | 38 | 细牙 | - | - | 询价 |
40524 | 226-M24*1.5 | M24*1.5 | 1.5 | 172 | 35 | 细牙 | - | - | 询价 |
40523 | 226-M24*2 | M24*2 | 2 | 172 | 35 | 细牙 | - | - | 询价 |
40502 | 226-M4*0.5 | M4*0.5 | 0.5 | 73 | 13 | 细牙 | - | - | 询价 |
40503 | 226-M5*0.5 | M5*0.5 | 0.5 | 79 | 16 | 细牙 | - | - | 询价 |
40504 | 226-M6*0.75 | M6*0.75 | 0.75 | 89 | 19 | 细牙 | - | - | 询价 |
40505 | 226-M7*0.75 | M7*0.75 | 0.75 | 89 | 19 | 细牙 | - | - | 询价 |
40506 | 226-M8*1 | M8*1 | 1 | 97 | 19 | 细牙 | - | - | 询价 |
40507 | 226-M9*1 | M9*1 | 1 | 97 | 19 | 细牙 | - | - | 询价 |
