点击 订货号或厂家货号了解内径百分表系列下各规格产品更多参数
| 订货号 | 厂家货号 | 测量范围(mm) | 分度值(mm) | L(mm) | 精度 | 备注 | 市场价 | 促销价 | 购买 |
| 20518 | Q20518 | Φ3-4 | 0.01 | - | - | 询价 | |||
| 20519 | Q20518 | Φ4-6 | 0.01 | - | - | 询价 | |||
| 20520 | Q20518 | Φ6-10 | 0.01 | - | - | 询价 | |||
| 20521 | Q20521 | Φ10-18 | 0.01 | - | - | 询价 | |||

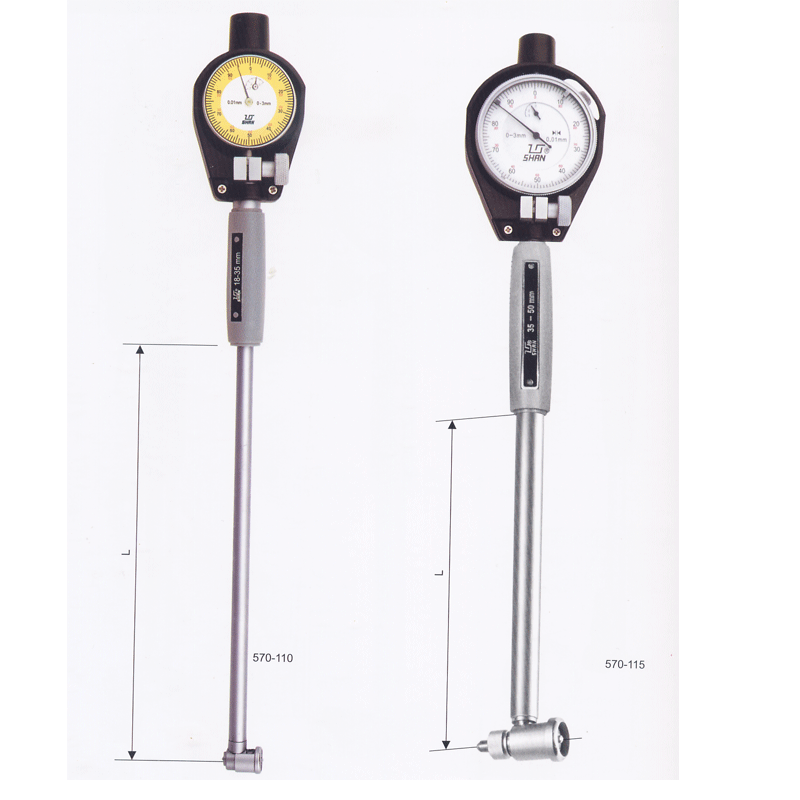

| 3322 | 570-110 | Φ18-35 | 0.01 | 160 | 15μm | - | - | 询价 | |
| 3323 | 570-115 | Φ35-50 | 0.01 | 270 | 15μm | - | - | 询价 | |
| 3324 | 570-120 | Φ50-100 | 0.01 | 270 | 18μm | - | - | 询价 | |

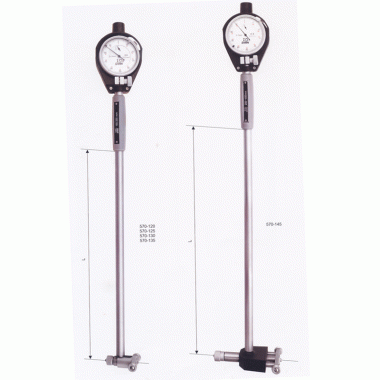

| 3325 | 570-125 | Φ50-160 | 0.01 | 270 | 18μm | - | - | 询价 | |
| 3326 | 570-130 | Φ100-160 | 0.01 | 270 | 18μm | - | - | 询价 | |
| 3327 | 570-135 | Φ160-250 | 0.01 | 270 | 18μm | - | - | 询价 | |
| 3328 | 570-145 | Φ250-450 | 0.01 | 270 | 18μm | - | - | 询价 | |

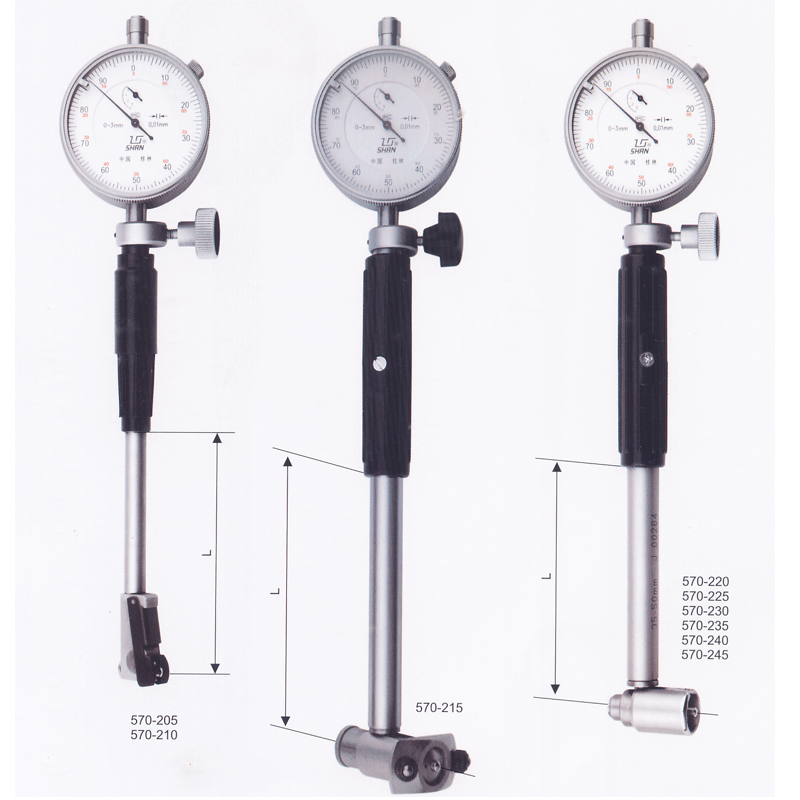

| 8649 | 570-205 | Φ10-18 | 0.01 | 45 | 12μm | - | - | 询价 | |
| 8650 | 570-210 | Φ18-35 | 0.01 | 75 | 15μm | - | - | 询价 | |
| 8651 | 570-215 | Φ35-50 | 0.01 | 80 | 15μm | - | - | 询价 | |
| 8652 | 570-220 | Φ50-100 | 0.01 | 200 | 18μm | - | - | 询价 | |
| 8653 | 570-225 | Φ50-160 | 0.01 | 200 | 18μm | - | - | 询价 | |
| 8654 | 570-230 | Φ100-160 | 0.01 | 200 | 18μm | - | - | 询价 | |
| 8655 | 570-235 | Φ160-250 | 0.01 | 200 | 18μm | - | - | 询价 | |
| 8659 | 570-235-1 | Φ160-250 | 0.01 | 200 | 18μm | 长杆，测深300mm | - | - | 询价 |
| 8656 | 570-240 | Φ20-200 | 0.01 | 300 | 18μm | - | - | 询价 | |
| 8657 | 570-245 | Φ250-450 | 0.01 | 200 | 18μm | - | - | 询价 | |
| 8658 | 570-245-1 | Φ250-450 | 0.01 | 200 | 18μm | 长杆，测深400mm | - | - | 询价 |
| 55850 | Q55850 | Φ50-160 | 0.01 | 延长杆500mm | - | - | 询价 |
