点击 订货号或厂家货号了解凸齿轮用圆弧齿轮滚刀系列下各规格产品更多参数

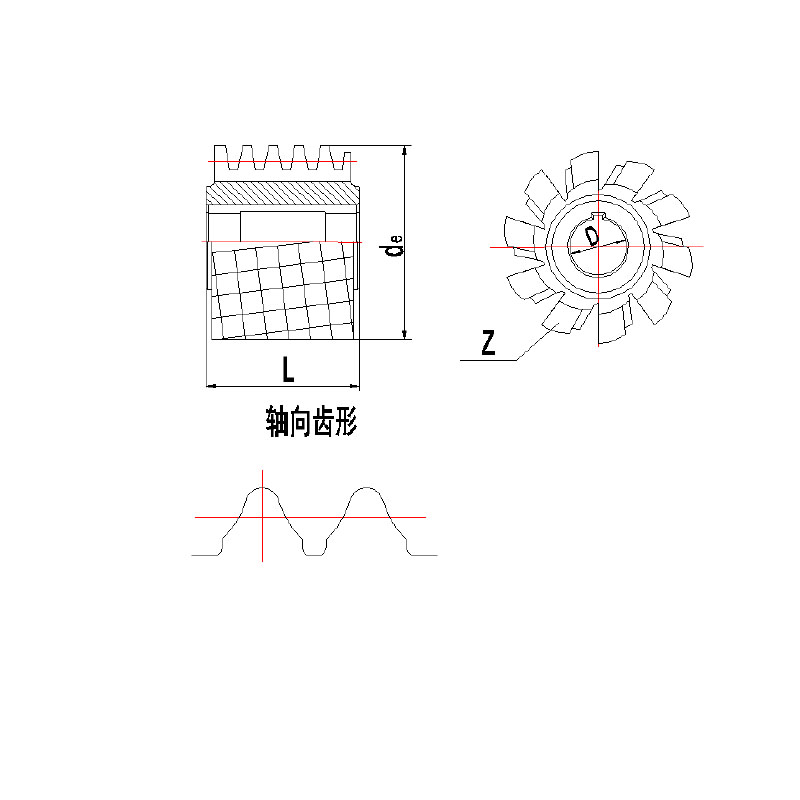

| 订货号 | 厂家货号 | 规格ｍ | de | L | D | a min | Z | A级 价格(元) | AA级 价格(元) | 市场价 | 促销价 | 购买 |
| 50656 | 25110-001 | 2 | 70 | 70 | 27 | 5 | 12 | 610 | 823 | - | - | 询价 |
| 50657 | 25110-002 | 2.5 | 70 | 70 | 27 | 5 | 12 | 657 | 904 | - | - | 询价 |
| 50658 | 25110-003 | 3 | 80 | 80 | 32 | 5 | 10 | 792 | 1069 | - | - | 询价 |
| 50659 | 25110-004 | 3.5 | 80 | 80 | 32 | 5 | 10 | 792 | 1069 | - | - | 询价 |
| 50660 | 25110-005 | 4 | 90 | 90 | 32 | 5 | 10 | 1119 | 1644 | - | - | 询价 |
| 50661 | 25110-006 | 4.5 | 90 | 90 | 32 | 5 | 10 | 1119 | 1644 | - | - | 询价 |
| 50662 | 25110-007 | 5 | 100 | 100 | 32 | 5 | 10 | 1837 | 2465 | - | - | 询价 |
| 50663 | 25110-008 | 5.5 | 112 | 112 | 40 | 5 | 10 | 1837 | 2465 | - | - | 询价 |
| 50664 | 25110-009 | 6 | 112 | 112 | 40 | 5 | 10 | 2106 | 2877 | - | - | 询价 |
| 50665 | 25110-010 | 7 | 125 | 125 | 40 | 5 | 10 | 2628 | 3531 | - | - | 询价 |
| 50666 | 25110-011 | 8 | 140 | 140 | 50 | 5 | 10 | 3548 | 4762 | - | - | 询价 |
单位：mm
注:齿形按67型设计。
