点击 订货号或厂家货号了解压力角14°30'模数齿轮滚刀系列下各规格产品更多参数

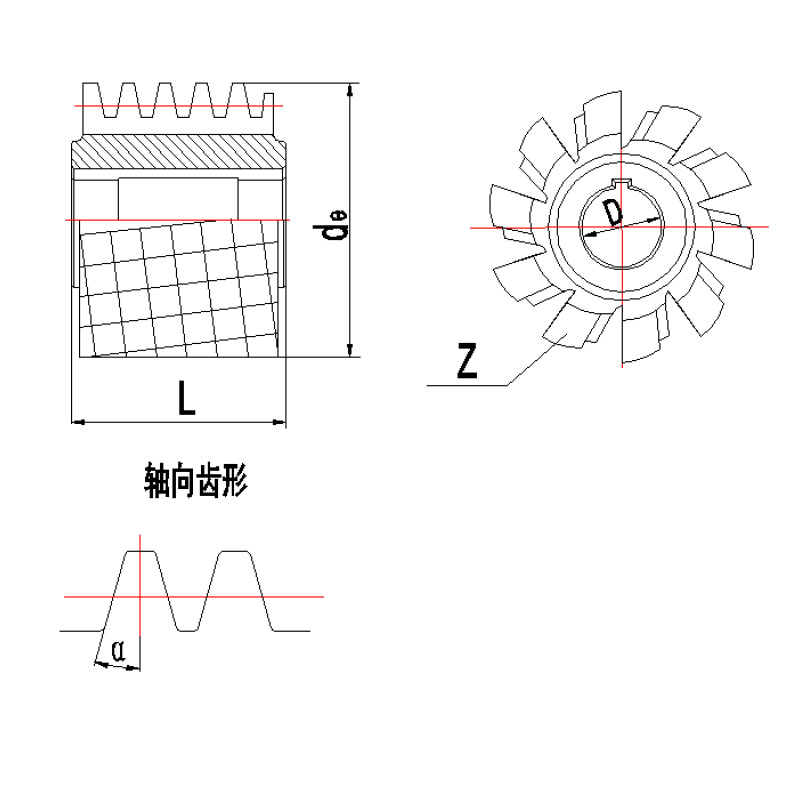

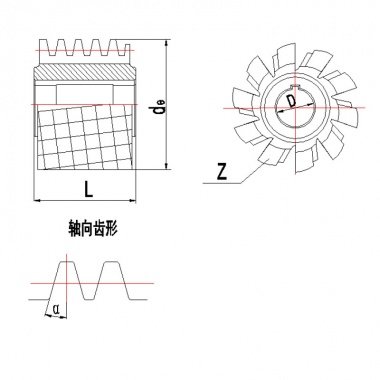

| 订货号 | 厂家货号 | 规格ｍ | de | L | D | Z | α | A级 价格(元) | AA级 价格(元) | 市场价 | 促销价 | 购买 |
| 51084 | 25100-751 | 1 | 50 | 40 | 22 | 12 | 14.5° | 580 | 753 | - | - | 询价 |
| 51085 | 25100-752 | 1.25 | 50 | 40 | 22 | 12 | 14.5° | 580 | 753 | - | - | 询价 |
| 51086 | 25100-753 | 1.5 | 55 | 45 | 22 | 12 | 14.5° | 747 | 971 | - | - | 询价 |
| 51087 | 25100-754 | 1.75 | 55 | 45 | 22 | 12 | 14.5° | 747 | 971 | - | - | 询价 |
| 51088 | 25100-755 | 2 | 55 | 50 | 22 | 12 | 14.5° | 759 | 986 | - | - | 询价 |
| 51089 | 25100-756 | 2.25 | 60 | 50 | 22 | 10 | 14.5° | 670 | 869 | - | - | 询价 |
| 51090 | 25100-757 | 2.5 | 65 | 55 | 22 | 10 | 14.5° | 712 | 927 | - | - | 询价 |
| 51091 | 25100-758 | 2.75 | 65 | 55 | 22 | 10 | 14.5° | 712 | 927 | - | - | 询价 |
| 51092 | 25100-759 | 3 | 70 | 60 | 27 | 10 | 14.5° | 747 | 971 | - | - | 询价 |
| 51093 | 25100-760 | 3.25 | 75 | 65 | 27 | 10 | 14.5° | 833 | 1084 | - | - | 询价 |
| 51094 | 25100-761 | 3.5 | 75 | 70 | 27 | 10 | 14.5° | 953 | 1239 | - | - | 询价 |
| 51095 | 25100-762 | 3.75 | 80 | 70 | 27 | 10 | 14.5° | 1021 | 1328 | - | - | 询价 |
| 51096 | 25100-763 | 4 | 80 | 75 | 27 | 9 | 14.5° | 1045 | 1358 | - | - | 询价 |
| 51097 | 25100-764 | 4.5 | 85 | 85 | 27 | 9 | 14.5° | 1249 | 1624 | - | - | 询价 |
| 51098 | 25100-765 | 5 | 90 | 90 | 27 | 9 | 14.5° | 1494 | 1941 | - | - | 询价 |
| 51099 | 25100-766 | 5.5 | 100 | 95 | 32 | 9 | 14.5° | 1724 | 2241 | - | - | 询价 |
| 51100 | 25100-767 | 6 | 105 | 100 | 32 | 9 | 14.5° | 1907 | 2478 | - | - | 询价 |
| 51101 | 25100-768 | 6.5 | 110 | 100 | 32 | 9 | 14.5° | 2029 | 2635 | - | - | 询价 |
| 51102 | 25100-769 | 7 | 115 | 105 | 32 | 9 | 14.5° | 2147 | 2790 | - | - | 询价 |
| 51103 | 25100-770 | 8 | 125 | 115 | 32 | 9 | 14.5° | 2867 | 3726 | - | - | 询价 |
| 51104 | 25100-771 | 9 | 140 | 130 | 40 | 9 | 14.5° | 4422 | 5751 | - | - | 询价 |
| 51105 | 25100-772 | 10 | 150 | 135 | 40 | 8 | 14.5° | 5382 | 6995 | - | - | 询价 |
单位：mm
注：此产品价格可按订货数量面议。
